DCON Utility Introduction

The DCON Utility is s toolkits kits that help user search the network , easily to Configure the I/O modules and test the I/O status via the serial port (RS-232/485) or ethernet port (using virtual com port). It support not only the DCON Protocol I/O modules but also the M Series I/O Modules ( Modbus RTU M-7K,M-87K and will support Modbus ASCII M-87K) now.

The main function of DCON Utility are list below :

COM Port : Configuration and setting for PC COM Port
Search Network : Show modules on data bus

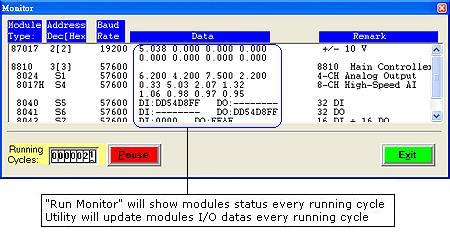

Run Monitoring : Utility will monitor network modules' I/O status every running cyde

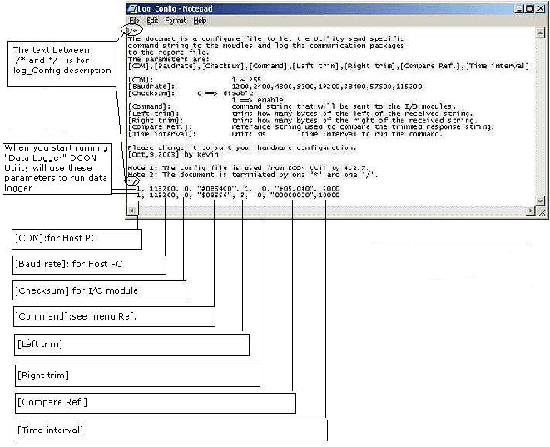

Run Data Logger : Utility use customized parameter to monitor the I/O modules and will make a log file for I/O data.

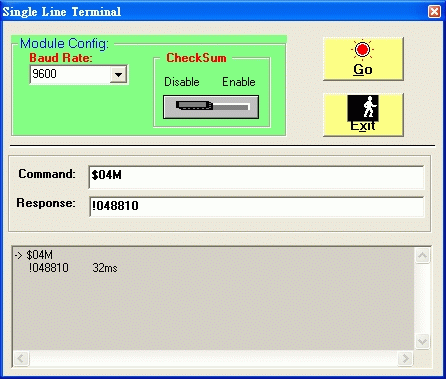

Terminal : for some situation users would want to use command to test module's function diretly.

Utility and development tool kit

	DCON_Labview Bundled driver for Labview Module supported: I-7000/8000/87K series (with DCON protocol) OS supported: Windows 98/NT/2000/XP
	DCON_Indusoft Bundled driver for Indusoft Module supported: I-7000/8000/87K series (with DCON protocol) OS supported: Windows 98/NT/2000/XP/CE
	DCON_DLL DLL library Module supported: I-7000/8000/87K series (with DCON protocol) Demo supported: VB/VC/BCB/Delphi (Source code included) OS supported:Windows 98/NT/2000/XP
	DCON_ActiveX ActiveX (OCX) component Module supported: I-7000/8000/87K series (with DCON protocol) Demo supported: VB/VC/BCB/Delphi (Source code included) OS supported: Windows 98/NT/2000/XP
	DCON_Linux Libraries for Linux platform Module supported: I-7000/8000/87K series (with DCON protocol) OS supported: Linux
	DCON_DDE DDE server Module supported: I-7000/8000/87K series (with DCON protocol) OS supported: Windows 98/NT/2000/XP
	NAPOPC Server OPC server Module/Controller supported: I-7000/8000/87K series (with DCON protocol) Modbus embedded controller ISaGRAF embedded controller OS supported: Windows 98/NT/2000/XP
