FALCON SF-132/SF-163V
All-in-One Vision Inspection Smart Camera
|
|
 |
|
| |
|
Introduction

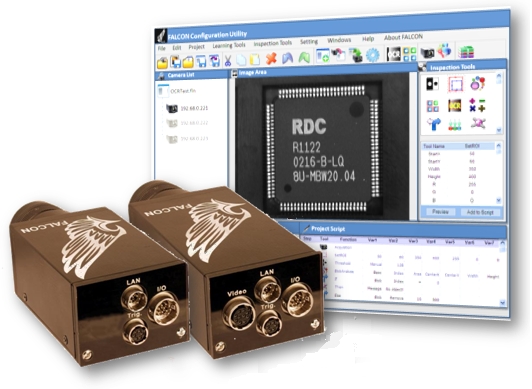

FALCON is a new product line of ICP DAS for vision inspection, featuring a compact and robust housing design, and it is ideal to work with PAC/PLC machine automation system. The FALCON SF-1 series with fantastic all-in-one design incorporates all image processing components, including a progressive-scan high-quality CCD sensor, a powerful DSP processor, an Ethernet interface, a RS-232 com port, and a real-time trigger input as well as PLC I/Os. In addition, the FALCON SF-163V equip with an SVGA video output for real-time monitoring of the inspected images.
The FALCON SF-1 series are suited for a wide range of tasks in industrial applications. The FALCON series can execute all image processing routines, and then output the inspection results to the PAC/PLC. There is no PC needed anymore!
|
|
| back |
|
Features
- 1/3” Progressive-scan CCD
- TI 400MHz DSP, 3200MIPS
- RS-232 and 100Mb Ethernet Interface
- Robust external trigger input and digital I/O
- SVGA output supported in SF-163V
- FALCON image processing configuration utility
|
|
Application
- Semiconductor
- Component inspection
- Manufacturing quality control
- Food and beverage inspection
- Microscopy and medical imaging
- Biometrics
|
|
| back |
|

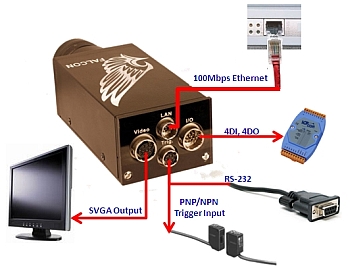

| ● Powerful I/O Interface |
|

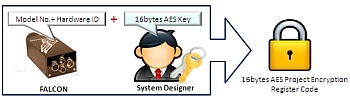

● AES Project encryption |
 |
|
 |
|

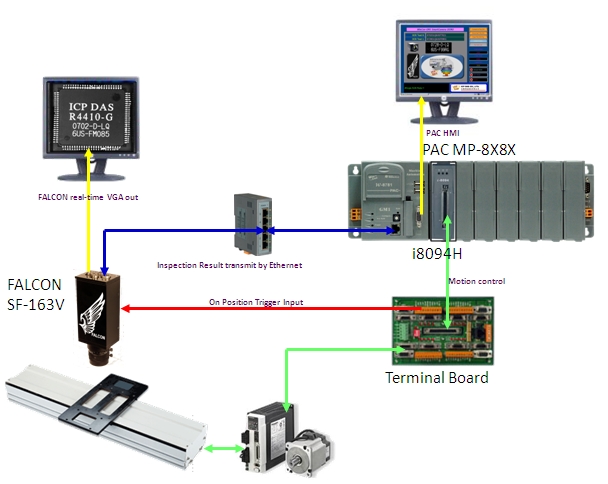

| ● Application system architecture |
 |
| back |
|
| Specification |
| |
SF-132 |
SF-163V |
| Sensor |
1/3” Sony CCD |
| Sensor cell size |
7.4um x 7.4um |
| Resolution |
640 (H) x 480(V) |
| Acquisition Speed |
32fps
|
63fps
|
| A/D Converter |
10-bit |
| DSP Processor |
TI 400MHz DSP, 3200MIPS |
| SDRAM |
32MB |
| Flash Memory |
4MB |
| Video Output |
Via Ethernet
|
SVGA (800 x 600) VESA standard, 12-pin Female
|
| LAN Interface |
100Mb/s Ethernet x 1
|
| COM Port Interface |
RS-232 up to 115.200 baud rate max. |
| Digital I/O |
4 inputs / 4 outputs optically decoupled 24V, outputs 4 x 400mA
|
| Supply voltage |
DC 24V, max. 300mA |
| Interface connections |
LAN (6-pin Male)
Trig. (Trigger/RS232 via 6-pin Female)
I/O (DC IN, PLC via 12-pin Male) |
| Storage conditions |
Temperature: -20℃ to 60℃
Max. Humidity: 90%, non condensing. |
| Operating conditions |
Temperature: 0℃ to 50℃ (housing temperature)
Max. Humidity: 80%, non condensing. |
| Dimensions |
90mm x 50mm x 35mm, 約. 250g
|
120mm x 50mm x 35mm, 約 350g
|
| Certificated |
CE |
|
|
| back |
|
| Ordering Information |
| Model No. |
Product Description |
| SF-132 |
FALCON SF-132 All-in-One Smart Camera |
| SF-163V |
FALCON SF-163V All-in-One Smart Camera |
|
| back |
|
| Optional Accessories |
| Model No. |
Picture |
Description |
| CA-SF1LAN |
 |

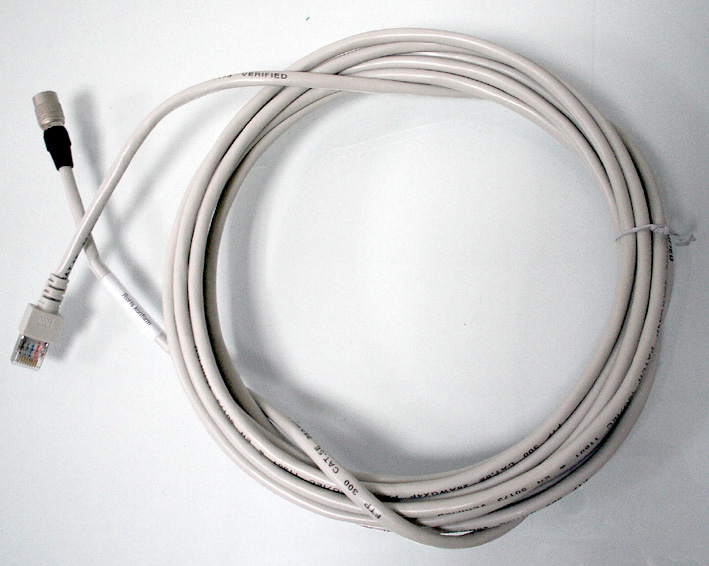

FALCON series LAN cable |
| CA-SF1COM |
 |

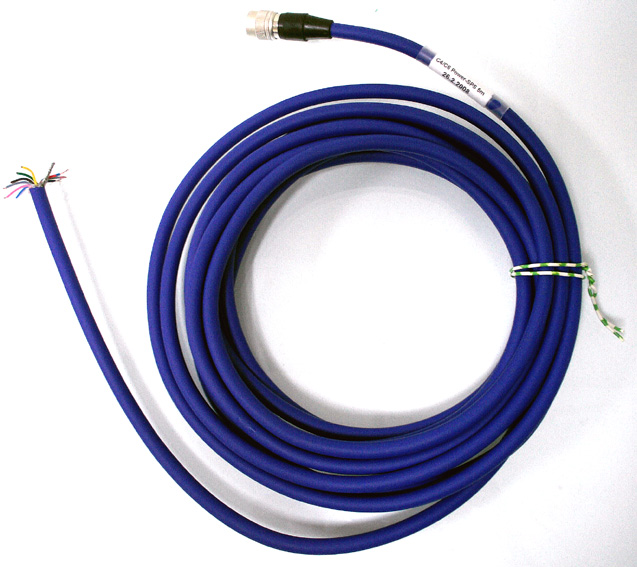

FALCON series RS-232 serial I/O port cable |
| CA-SF1TRIG |
 |

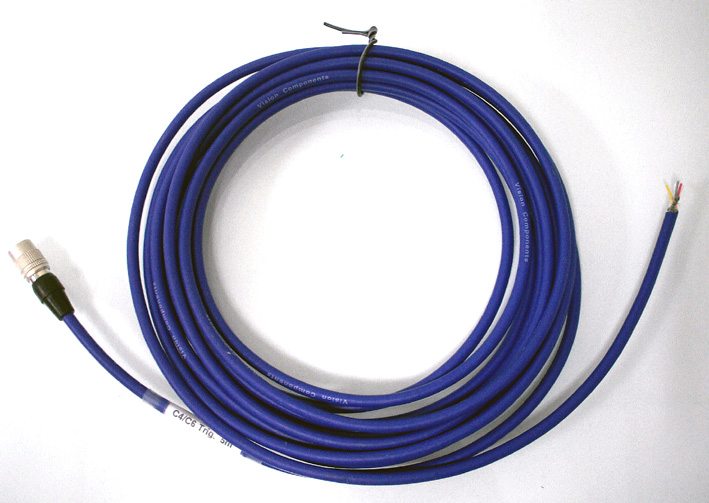

FALCON series Power and Trigger cable |
| CA-SF1VGA |
 |

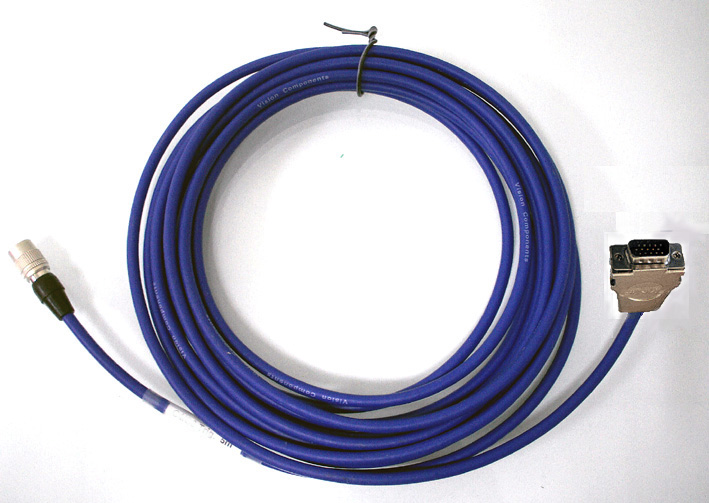

FALCON SF-163V SVGA output cable |
|
