Model: NS-200FT
NS-200FT
Industrial 10/100 Base-T to 100 Base-FX Fiber Optics
Converter





The NS-200FT is a Ethernet(10/100Base-TX) to Fiber Optic(100Base-FX) converter. The Ethernet supports 10/100M auto-negotiation feature and auto MDI/MDIX function.

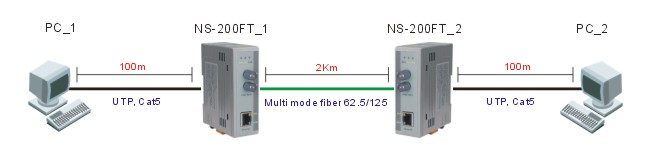

The NS-200FT operates at either half or full duplex mode. In full duplex mode, range is 2km with 62.5/ 125£gm fiber cables; in half duplex mode, range is 412m with 62.5/ 125£gm fiber cables.

It contains "soft start" function with overload protection, high-low voltage protection.

The width of the NS-200FT is just 32.30 mm, so it can be used where space is important.










  • Automatic MDI / MDI-X crossover for plug-and-play
  • Each port supports both 10/100 Mbps speed auto negotiation
  • Store-and-forward architecture
  • Full duplex IEEE 802.3x and half duplex backpressure flow control
  • 1.4Gbps high performance memory bandwidth.
  • Frame buffer memory : 512 Kbit
  • Integrated look-up engine with dedicated 1 K unicast MAC addresses.
  • MTBF = 438,000 hours ( Temperature is 25 ¢X)
  • MTBCF = 525,600 hours ( Temperature is 25 ¢X)
  • Supports +10~+30Vdc voltage
    Reverse Polarity Protection
  • Supports operating temperatures from 0 ~ +70¢XC
  • DIN rail mount for industrial usage





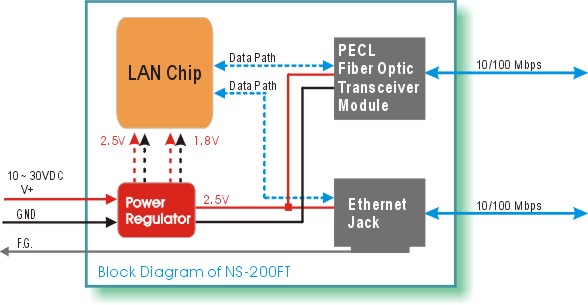

Spec


Technology
Standards IEEE802.3, 802.3u, 802.3x
Processing Type Store & forward wire speed switching - no delays
MAC Addresses 1024
Memory Bandwidth 1.4 Gbps
Flow Control IEEE802.3x flow control, back pressure flow control
Interface
RJ45 port 10/100BaseT(X) auto negotiation speed, F/H duplex mode,
and auto MDI/MDIX connection
Fiber Optic port 100 Base-FX(Multi-mode; ST connector)

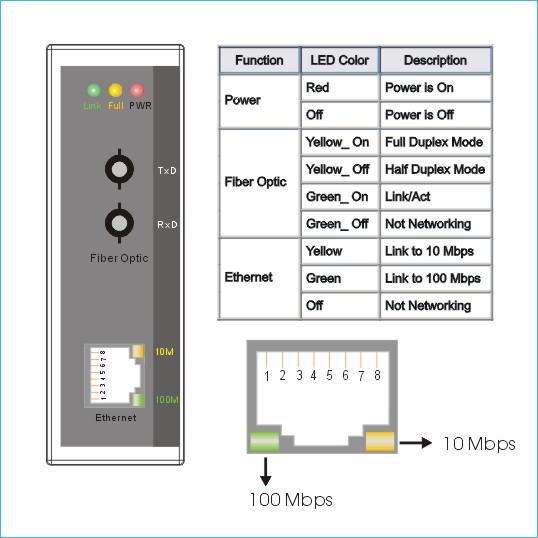

LED Indicators 10/100M, Link/Act, Full duplex/Half duplex(Fiber Port)
Ethernet Isolation 1500 Vrms 1 minute
Frame Ground for EMS Protection Yes
Fiber Optic Multi mode fiber cables:50/125, 62.5/125 or 100/140 £gm
Distance :2 km, (62.5/125 £g mrecommended) for full duplex
Wavelength : 1300 or 1310nm
Min. TX Output:- 20 dBm
Max. TX Output: -14 dBm
RX Sensitivity: -34 to -31 dBm
Ethernet Transmission distance Ethernet : 2-pair UTP/STP Cat.3,4,5, EIA/TIA-568 100-ohm
Fast Ethernet : 2-pair UTP/STP Cat. 5, EIA/TIA-568 100-ohm
Power
Input Voltage Range +10 ~ +30VDC (Non-isolation)
Power consumption 0.12A@24VDC, +/- 5% arrowed with 100M Full duplex
LED Indicator Yes
Protection Power reverse polarity protection
Frame Ground for EMS Protection Yes
Connection 3-Pin Removable Terminal Block
Mechanical
Case Plastic
Flammability UL 94V-0

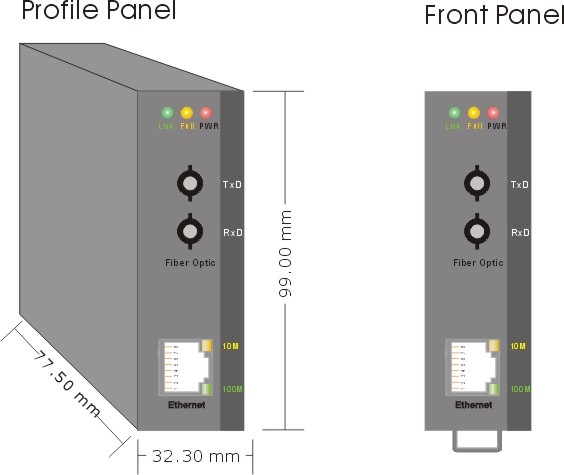

Dimensions 32.30mm x 99.00mm x 77.50mm (W x H x D)
Installation DIN rail mount
Environmental
Operating Temperature 0 ~ +70¢XC
Storage Temperature -20 ~ +85¢XC
Ambient Relative Humidity 10% to 90% non-condensing







NS-200FT    Industrial 10/100 Base-T to 100 Base-FX Fiber Optics Converter
NS-200FT CR    Industrial 10/100 Base-T to 100 Base-FX Fiber Optics Converter (RoHS)








PWR-24/110    24V/0.2A Power Supply, (No-mounting)
KWM020-1824F    24V/0.75A Power Supply, (No-mounting)
DIN-KA52F    24V/1A Power Supply, (With DIN-Rail mounting)
