| Technology |
| Standards |
IEEE802.3, 802.3u, 802.3x |
| Processing Type |
Store & forward wire speed switching - no delays |
| MAC Addresses |
1024 |
| Memory Bandwidth |
1.4 Gbps |
| Flow Control |
IEEE802.3x flow control, back
pressure flow control |
| Interface |
| RJ45 port |
10/100BaseT(X) auto negotiation
speed, F/H duplex mode,
and auto MDI/MDIX
connection |
| Fiber Optic port |
100 Base-FX(Single-mode;
SC connector) |

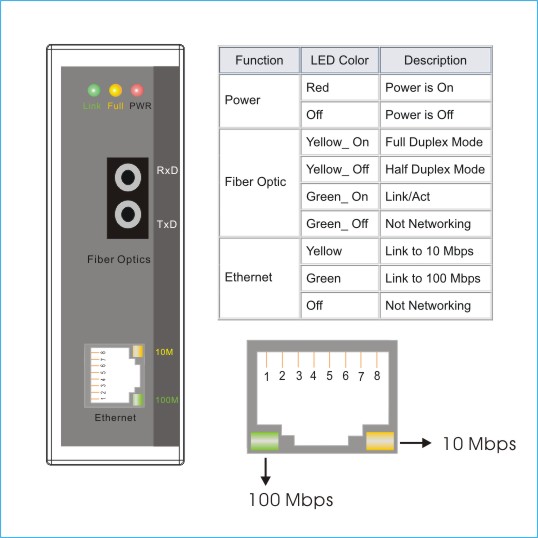

| LED Indicators |
10/100M,
Link/Act, Full duplex/Half duplex(Fiber
Port) |
| Ethernet Isolation |
1500 Vrms 1 minute |
| Frame Ground for EMS Protection |
Yes |
| Fiber Optic |
Single-mode fiber cables:8.3/125, 8.7/125, 9/125 or
10/125 £gm
|

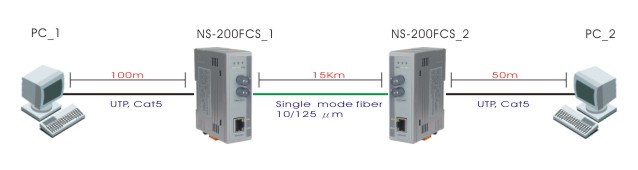

| Distance :15
km, (9/125 £gm mrecommended)
for full duplex |
| Wavelength : 1300 or 1310nm |
| Min. TX
Output:- 15 dBm |
| Max. TX Output: -8 dBm |
| RX Sensitivity: -36 to -31 dBm |
| Ethernet Transmission distance |
Ethernet : 2-pair UTP/STP Cat.3,4,5, EIA/TIA-568 100-ohm |
| Fast Ethernet : 2-pair UTP/STP Cat. 5, EIA/TIA-568 100-ohm |
| Power |
| Input Voltage Range |
+10 ~ +30VDC (Non-isolation) |
| Power consumption |
0.12A@24VDC,
+/- 5% arrowed with 100M Full duplex |
| LED Indicator |
Yes |
| Protection |
Power reverse polarity protection |
| Frame Ground for EMS Protection |
Yes |
| Connection |
3-Pin Removable Terminal Block |
| Mechanical |
| Case |
Plastic |
| Flammability |
UL 94V-0 |

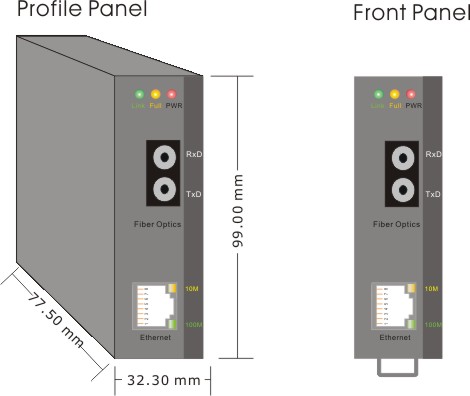

| Dimensions |
32.30mm x 99.00mm x 77.50mm (W x H x D) |
| Installation |
DIN rail mount |
| Environmental |
| Operating Temperature |
0 ~ +70¢XC |
| Storage Temperature |
-20 ~ +85¢XC |
| Ambient Relative
Humidity |
10% to 90%
non-condensing |
