| Latest version: 1.5.0, 2014/09/19 |
 |
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
| |

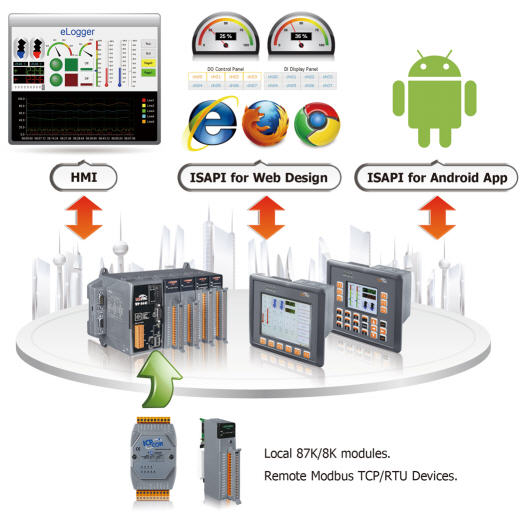

eLogger is a free charge and easy-to-use software to implement HMI and data logger on ICP DAS Windows CE.NET 5.0 based PACs (WinPAC and ViewPAC), Windows CE.NET 6.0 based PACs (XP-8000-CE6 and XP-8000-Atom-CE6) or Windows XPE based PACs (XP-8000 and XP-8000-Atom) for simple I/O monitoring and controlling systems. It can cut costs and shorten time-to-market.
eLogger can quickly and easily develop an application with flexible I/O configuration. The developing can be completed in just 5 simple procedures: configuring I/O modules, configuring data logger, designing HMI layout pages, uploading the project and web pages to WinPAC/ViewPAC/XPAC, running it. In the simple procedures, there is no need of software programming knowledge. Furthermore, if more powerful functions need to be added, eLogger also provides a flexible ¡§shared memory¡¨ interface to allow your VS.NET and ISaGRAF programs co-work with it. |
|
| |
|
|
| |
 |
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
|
|
| |
 |
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
1.PAC Support: |
|
| |
- Developer: Windows 2K,Windows XP, Windows Vista, Windows7
- Run time target: Windows CE.NET 5.0 platform, such as WP-8x3x series, WP-8x4x series, VP-23W1, VP-25W1
Windows CE.NET 6.0 platform, such as XP-8000-CE6, XP-8000-Atom-CE6
Windows XPE platform, such as XP-8000, XP-8000-Atom
|
|
| |
 |
|
| |
2. Driver Support: |
|
| |
- Module on slot
- I-8K series: I-8017HW, I-8024W, and all I-8K DIO module. (support list)
- I-87K series: DI, DO, AI, AO, counter, frequency, DI with latch function. (support list)
- Modbus serial master( support Modbus RTU/ Modbus ASCII)
- M-7000.
- Modbus RTU devices/Modbus ASCII devices.
- Modbus TCP master
- ET-7000.
- PET-7000 series.
- Modbus TCP devices.
|
|
| |
|
|
| |
3. HMI |
|
| |
- Elements: Button, Text Box, Linear Gauge, Angular Gauge, LED, Switch, Tank, Label, Plot, Seven Segment, Thermometer, Slider, Odometer.
|
|
| |
 |
|
| |
- Pages¡GMaximum of 32 pages.
|
|
| |
|
|
| |
4.  Web Page |
|
| |
- Support elements: Text Box, Seven Segment, Label, Button, Picture Toggle.
|
|
| |
|
|
| |
5. Value Scaling |
|
| |
Set gain and offset can scale analog values from volt or amp unit to another physical unit.
For example: rpm for rotation, kg for weight. |
|
| |
|
|
| |
6. Account Management |
|
| |
- 3 levels operating management: Admin, Power User, User.
|
|
| |
|
|
| |
| |
Admin |
Power User |
User |
| Open project |
 |
 |
|
| Start/Stop project |
|
|
|
| Set AO/DO values |
|
|
|
| Switching group pages |
|
|
|
|
|
| |
|
|
| |
: allowed : not allowed |
|
| |
|
|
| |
7. Remote Maintenance |
|
| |
You can use eLogger Developer's remote control function to Upload / Run / Stop the project through the Ethernet.
|
|
| |
|
|
| |
8. Data Base |
|
| |
- Local data base: SQL embedded.
- Remote data base(not avalible): SQL 2005 on Windows platform.
|
|
| |
|
|
| |
9. Logic Control Programming |
|
| |
Via the " shared memory " , you can choose ISaGRAF or VS.Net to develop a logic control program and co-work with the elogger. Your programs can access the data of I/O module and exchange other temporary data through the "shared memory". You can focus on the logic control programming. |
|
| |
- ISaGRAF (IEC61131-3 standard PLC languages) (Refer to ISaGRAF FAQ-115)
- Visual Studio .NET (C#, VB.NET) for Window CE.NET 5.0
|
|
| |
|
|
| |
 |
|
| |
|
|
| |
10. Support ISAPI
You can read/write the shared memory by calling ISAPI URL. It helps you to design a HMI web page with javascript.
With "MIT App Inventor" which is the Android App develop site, you can build a Android app by calling ISAPI quickly, no coding required.
|
|
| |
11. Support Modbus TCP Server
You can read/write the data by Modbus TCP Protocol. |
|
| |
|
|
|
|
|
| |
