 User Interface |
|
| |
| New ribbon interface features logical tool/object grouping, and the ability to open multiple documents simultaneously. |
|
|
| |
|
|
| |
|
|
| |
Graphics and design tools |
|
| |
Create screens to meet any application requirement using the tools in our graphic interface. Combine built-in objects to create any functionality required. Store graphics in the library for future use, and easily make projects across a product line share a consistent “look and feel”.
|
|
|
| |
|
|
| |
|
|
| |

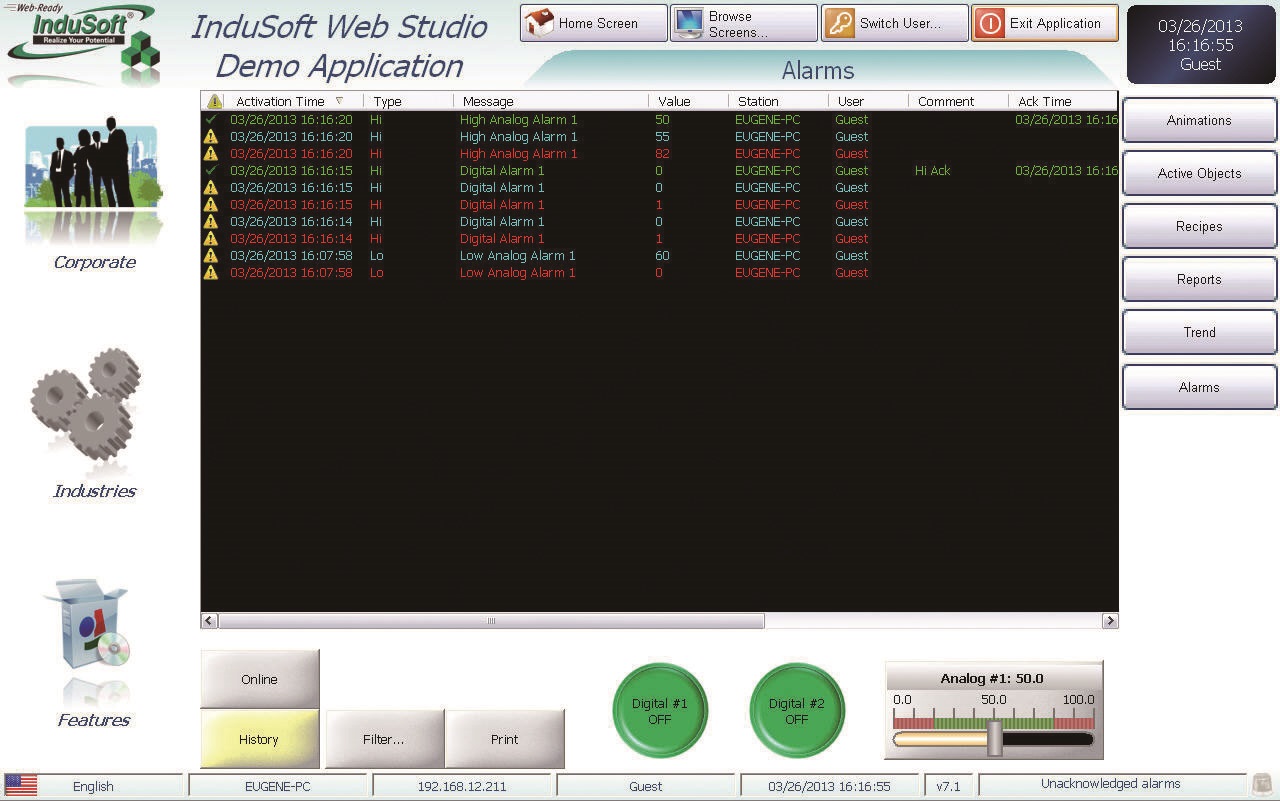

Alarms & Events |
|
| |
Alarms are real-time and historical, log data in binary format or to any database. Other than all the alarm functions you'd expect, InduSoft Web Studio v7.1 also sends online alarms or reports using multi-media format like PDF.
InduSoft offers traceability for operator initiated actions or internal system activity. Log events such as security system changes (user logon or off), screen open/close, recipe/report operations, system warnings, and any tag value changes, including custom messages.
|
|
|
| |
|
|
| |
|
|
| |
Trends |
|
| |
| Real-time and Historical trends are supported. Log
data in binary format or to any local or remote SQL database. Color or fill trends with graphic elements to enhance clarity
of data. Date/Time based or numeric (X/Y plot) trends give you the flexibility to display information that best suits your application. InduSoft Web Studio supports vertical and
horizontal trending. |
|
|
| |
|
|
| |
|
|
| |
Animation |
|
| |
| IWS gives you great command over graphics in a user friendly and intuitive interface. Paste images, and
even rotate them dynamically using custom rotation points. Fill bar graphs with color, or adjust the scale of objects with easy-to-use configuration. Other animations include ‘command’ (for touch, keyboard and mouse interaction), hyperlink, text data link, color, resize, and position. |
|
|
| |
|
|
| |

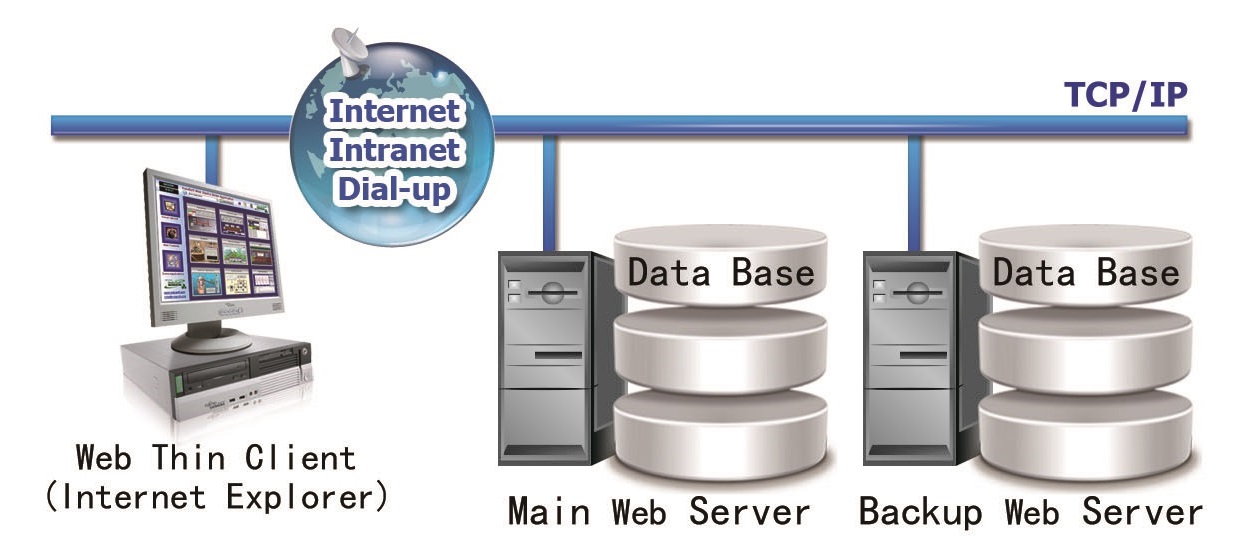

Database |
|
| |
| Connect to any SQL database (MS SQL, MySQL,Sybase, Oracle), or MS Access or Excel, and ERP/MES systems (including SAP), even from Windows Embedded CE. InduSoft Web Studio is flexible, offering a built in interface that doesn’t require knowledge of SQL (for trends, alarms/events, grid and other objects). |
|
|
| |
|
|
| |
|
|
| |
Drivers and OPC |
|
| |
| IWS 7.1 not only provides over 240 native communication drivers but also native OPC interfaces, such as OPC DA (Server/Client), OPC HDA(Server), UA (Client) and OPC .NET 3.0 (Client). InduSoft Web Studio v7.1 also supports OPC XML as an additional add-on. |
|
|
| |
|
|
| |
|
|
| |
Thin Client |
|
| |

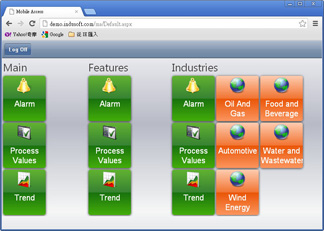

| Remotely view screens as web pages using Internet Explorer web browser, or InduSoft Secure Viewer. Use SMA (Studio Mobile Access) to monitor or access
process values and alarms with remote devices such as tablets and mobile phones. Enhanced SMA offers data in easy-to-read widgets that can be viewed on any HTML5 based web browser found on iPads, and Android phones and tablets. |
|
|
| |
|
|
| |
|
|
| |
Recipes and Reports |
|
| |
| Save time and maintain consistency by automating part parameters or production quantities with flexible recipe management tools. The report tools allows user to create clear, concise reports in plain text, RTF, XML, PDF, HTML, and CSV or integrate with Microsoft Office programs such as Excel. Get the data you need, in the format you need it, to make informed decisions, fast. |
|
|
| |
|
|
| |
|
|
| |
Scripting |
|
| |
| Two powerful scripting languages are supported; built-in InduSoft functions and standard VBScript. Take advantage of widely available resources for VBScript. Both the native InduSoft scripting language and VBScript can be used simultaneously to give you the functionality you need, even from thin clients. |
|
|
| |
|
|
| |
.NET and ActiveX |
|
| |
| Use 3rd party controls to enhance your project. IWS is a container for ActiveX and .NET controls, allowing you to add functionality such as browsers, media players, charting, live streaming from cameras, and other ActiveX or .NET controls. |
|
|
| |
|
|
| |
Security and Intellectual Property Protection |
|
| |
| InduSoft includes support for group and user accounts, e-signatures, and tracability. Also in Indusoft, screens, documents, scripts and worksheets can be individually password protected. |
|
|
| |
|
|
| |
Work seamlessly together - Collaborative Solution |
|
| |
| The collaborative solution offers support for versioning and source control, and interaction through Microsoft’s Team Foundation Server, allowing Application Lifecycle Management on location or on the cloud. (Additional licenses required) |
|
|
