IWS applications run on microcomputers connected in real-time to machines or processors through programmable controllers, remote I/O devices, and other data acquisition equipment.
These applications consist of animated operator-interface screens, configurable drivers and other controllable I/O devices, an application tags database, and optional modules such as alarm monitors, logic, trend charts, recipes, schedulers, and a security system.
New Features for InduSoft v6.1

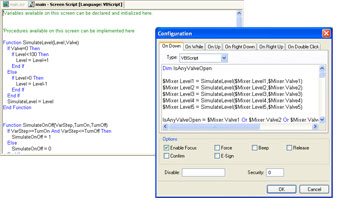

[ VBScript Supported ]
Embedded VBScript interface, allowing the user to create simple or sophisticated scripts and logics directly in the objects or background tasks. VBScript also runs under WinCE and Web Thin Client stations.

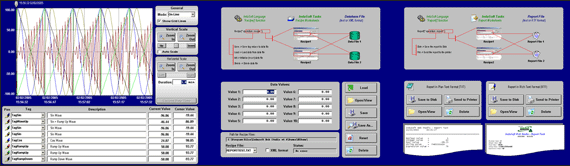

[ Multi-Function Trend ]
Display of multiple curves simultaneously
Support for different Data Sources, such as Tag, Batch, Database and Text File
Simultaneous display of an unlimited number of data points. This feature might be limited by the hardware used since available memory and performance will vary
[ Database / System Redundancy ]
Support for third-party SQL Relational Databases such as SQL Server, MS Access, Excel, Oracle, Sybase and others, via standard ADO.NET Providers.
Embedded ADO.NET interface for all history tasks ( Alarms, Events and Trends ) as well as for the native Grid object.
Database connectivity from any platform supported by IWS or CEView ( including Windows CE and Pocket PC ), through the unique Studio Database Gateway, which provides connection to the database through a standard TCP/IP link.
Support for Secondary Database in the modes "Redundancy" or "Store and Forward" increasing the reliability of the system and avoiding loss of data.
When Primary Control system broke down, the secondary control system will take over the control automatically.
InduSoft Web Studio Features
[ General ]
Intuitive script language with more than 100 standard functions is provided.
ActiveX container (Windows NT/2000/XP/CE/C)
Dynamic library of symbols - customizable
Provide Multi-level security for applications, including the internet and intranet (Unlimited groups and users).
Conform to industry standards such as Microsoft.NET, OPC, DDE, ODBC, XML.
Provide automatic language translation at run time and internationalization using Unicode.
Full-Featured web Thin Client solution (visualization and commands, security system, On-line/History alarms, On-line/History trend, ActiveX support, translation, etc).
Automatic e-mail (SMTP) and dial-up connection interface supported
ODBC interface
Scheduler module (event).
PC-based control software integration through a shared database.
Debug tools: Database Spy and LogWin (local or remote maintenance on the run-time system)
[ Graphics ]
Create sophisticated
interfaces with point and click, drag and drop ease
Import graphics from
more than 15 different formats for enhanced and realistic
screens
Support more than 40
pre-defined dynamic effects; including shadowing, foreground
and background color, blinking, fill, rotation, motion, scale,
text, and animation
Provide an object-oriented
environment for simple application development and screen
and object re-usability
Use an extensive symbol
library to simplify development
Fill Effect
[ Alarms ]
Provide a sophisticated alarms management system which allows you to send alarms to various utilities such as screen , e-mail, Web browser, and archive
Provide free format
alarm messages, uses secondary search keys, and accesses through
groups or tags
Archive alarms to a
file, printer, or to an SQL-database
Filters, sorts, or color
sorts alarms for easier visual interpretation
[ Trending ]
Keep track of process behavior
on-line or through historical trending
Distribute information
throughout the network for easy monitoring on screens or a
Web browser

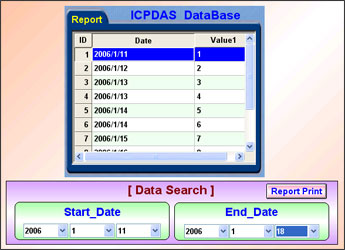

[ Recipes and
Reports ]
Recipes (XML and simple text) and Report (RTF and simple text)

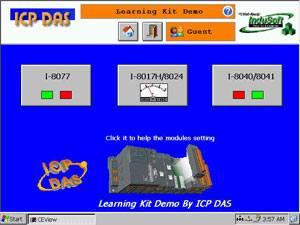

[ Input/Output ]
Include more than 150 device drivers for Windows NT/2000/XP/CE/C
