PET-7018Z
10-channel Thermocouple Input with High Voltage Protection and 6-channel Isolated Digital Output PoE Module |
 |
 |
 |
|
| |
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
| |
Power-over-Ethernet (PoE) allows power and data to be carried over a single Ethernet cable, so a device can operate solely from the power it receives through the data cable. This innovation allows greater flexibility in office design, higher efficiency in systems design, and faster turnaround time in set-up and implementation.
The PET-7018Z feature true IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) using both Ethernet pairs (Category 5 Ethernet cable). The PET-7018Z can receive power from an auxiliary power sources like AC adapters and battery in addition to the PoE enabled network. This is a desirable feature when the total system power requirements exceed the PSE's load capacity. Furthermore, with the auxiliary power option, the PET-7018Z can be used in a standard Ethernet (non-PoE) system.
The PET-7018Z, a web-based Ethernet I/O module, features a built-in web server, which allows configuration, I/O monitoring and I/O control by simply using a regular web browser. Besides, with the web HMI function, no more programming or HTML skills are needed; creating dynamic and attractive web pages for I/O monitoring and I/O control would be fun to engineers ever after. The PET-7018Z offers easy and safe access for users from anytime and anywhere! In addition, PET-7018Z also supports Modbus/TCP protocol that makes seamless integration to SCADA software.
The PET-7018Z is a 16-bit, 10-channel differential analog inputs and 6-channel digital ouputs module that provides programmable input range on all analog channels(+/-15 mV, +/-50 mV, +/-100 mV, +/-500 mV, +/-1 V, +/-2.5 V, +/-20 mA, 0 ~ 20 mA, 4 ~ 20 mA and thermpocouples) and digital output can be set alarm output. Each analog channel is allowed to configure an individual range and has 240 VAC high over voltage protection. more...
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
- IEEE 802.3af-compliant Power over Ethernet (PoE)
- Built-in Web Server
- Modbus/TCP Protocol
- I/O Pair Connection
- 10/100 Base-TX Ethernet
- Support Current Input, Voltage Input and Thermocouple Input
- Individual Channel Configuration
- Open Wire Detection
- Over Voltage Protection is up to 240 Vrms
- 6-channel Digital Output for Alarm Output
- Automatic Compensation Each Channel
- ESD Protection
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
| Building Automation, Factory Automation, Machine Automation, Remote
Maintenance, Remote diagnosis, Testing Equipment. |
|
|
| |
|
|
|
|
|
| |
back |
|
 |
|
|
| |
|
|
| |
| CPU |
| CPU |
80186 CPU (80MHz) |
| SRAM |
512K Bytes |
| Flash Memory |
512K Bytes |
| EEPROM |
16K Bytes |
| Dual Watchdog |
Yes |
| Communication |
| Ethernet Port |
10/100 Base-TX (With Link, Activity LED Indicator)
Automatic MDI/MDI-X |
| Analog Input |
| Input Channels |
10 Differential |
| Input Type |
+/-15 mV, +/-50 mV, +/-100 mV, +/-500 mV, +/-1 V, +/-2.5 V
+/-20 mA, 0~20 mA, 4~20 mA (Requires Optional External 125 Ohms Resistor)
Thermocouple (J, K, T, E, R, S, B, N, C, L, M, LDIN43710) |
| Resolution |
16-bit |
| Sampling Rate |
10 samples/Sec. total |
| Accuracy |
+/-0.1% or better |
| BandWidth |
15.7 Hz |
| Zero drift |
+/-0.5 £gV/¢XC |
| Span drift |
+/-25 ppm/¢XC |
| Input Impedance |
>300K Ohms |
| Common Mode Rejection |
150 dB min. |
| Normal Mode Rejection |
100 dB |
| Open Thermocouple Detection |
Yes |
| Individual Channel Configuration |
Yes |
| Temperature outputs consistency |
Yes |
| Stable temperature output in the field |
Yes |
| Over Voltage Protection |
240 Vrms |
| ESD Protection |
4kV Contact for each terminal, and 8KV Air for random point |
| EFT Protection |
4kV for Power |
| Digital Output |
| Output Channels |
6 (Sink) |
| Output Type |
Isolated Open-Collector |
| Max Load Current |
700mA/Channel |
| Load Voltage |
5 ~ 50 VDC |
| DB-1820 |
| Wire Strip Length |
4~5 mm |
| Wire Range |
16~24 AWG |
| Isolation |
| Ethernet |
- |
| AI and DO |
2500 VDC |
| LED Indicator |
| PoE |
PoE On |
| L1 |
Run |
| L2 |
Link/Act |
| L3 |
10/100 M |
| Mounting |
| Din Rail Mount |
Yes |
| Wall Mount |
Yes |
| LED Indicator |
| PoE |
PoE On |
| L1 |
Run |
| L2 |
Link/Act |
| L3 |
10/100 M |
| Power Requirements |
| IEEE 802.3af |
Class 1 |
| Required Supply Voltage |
Powered by Power-Over-Ethernet (PoE) or auxiliary power +12 ~ 48 VDC(non-regulated) |
| LED Indicator |
Yes |
| Power Consumption |
PoE: 3.0 W
Auxiliary Power(24 VDC):2.4 W |
| Environment |
| Operating Temperature |
-25 ~ +75¢XC |
| Storage Temperature |
-30 ~ +80¢XC |
| Relative Humidity |
5 ~ 90% RH, non-condensing |
| Dimensions |
| Dimensions( W x H x D) |
123 mm x 72 mm x 35 mm |
|
|
|
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
| Type |
Range (¢XC) |
| J |
-210 ~ +760 |
| K |
-270 ~ +1372 |
| T |
-270 ~ +400 |
| E |
-270 ~ +1000 |
| R |
0 ~ +1768 |
| S |
0 ~ +1768 |
| B |
0 ~ +1820 |
| N |
-270 ~ 1300 |
| C |
0 ~ 2320 |
| L |
-200 ~ +800 |
| M |
-200 ~ +100 |
| L (DIN43710) |
-200 ~ +900 |
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
 |
 |
 |
 |

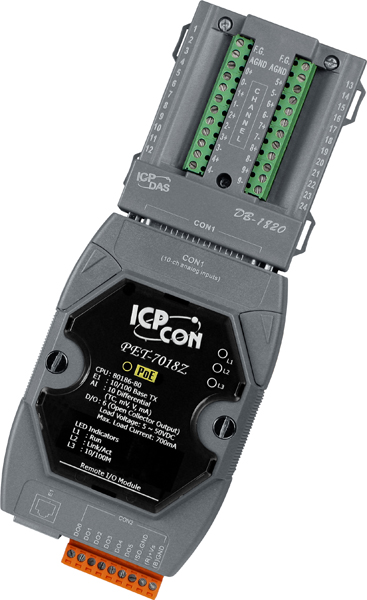

| PET-7018Z-G/S |
PET-7018Z-G/S with
CD-2518D kit |
PET-7018Z-G/S with
CD-25015 kit |
PET-7018Z-G/S2 |
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |

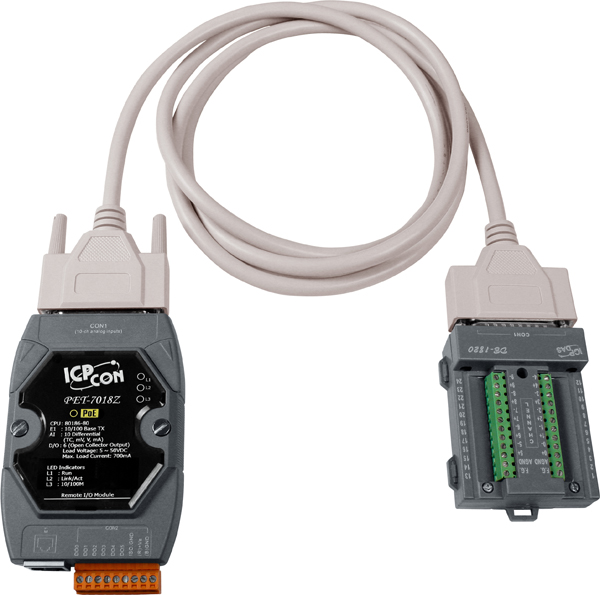

| PET-7018Z/S CR |
10-channel Thermocouple Input with High Voltage Protection and 6-channel Isolated Digital Output PoE Module (RoHS)
include PET-7018Z module and DB-1820 daughter board |

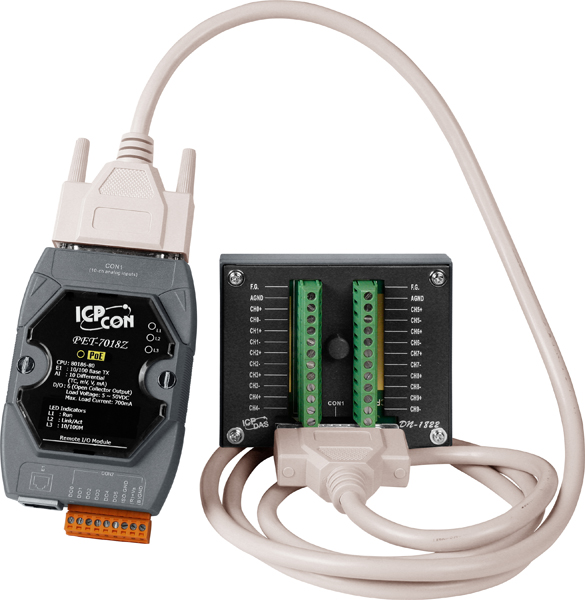

| PET-7018Z/S2 CR |
10-channel Thermocouple Input with High Voltage Protection and 6-channel Isolated Digital Output PoE Module (RoHS)
include PET-7018Z module and DN-1822 daughter board and 1.8m cable |
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
| NS-205PSE CR |
Industrial 5-Port PoE Ethernet Switch |
| NS-208PSE CR |
Industrial 8-port 10/100Mbp Ethernet with 8-port PoE Switch |
| NS-208PSE-4 CR |
Industrial 8-port 10/100Mbp Ethernet with 4-port PoE Switch |
| NS-205PSE-24V CR |
Industrial 5-port 10/100Mbp Ethernet with 4-port PoE Switch; 24 VDC Input |
| MDR-60-48 |
48 V/1.25 A, 60 W Power Supply with DIN-Rail Mounting |
| DIN-KA52F-48 |
48 V/0.52 A, 25 W Power Supply with DIN-Rail Mounting |
| CD-2518D |
25F-25M 1.8m cable with DIN-Rail Mount of DB-1820 |
| CD-25015 |
25F-25M 15cm cable with DIN-Rail Mount of DB-1820 |
|
|
| |
|
|
|
|
|
| |
