PET-7000 Web based I/O module
Power over Ethernet + ET-7000 = PET-7000

PET-7000 features ¡§PoE¡¨ and many other advantages in ET-7000. Now, not only data but power is carried through an Ethernet cable. This feature makes installation of PET-7000 a piece of cake. Imagine that no more unnecessary wires, only an Ethernet cable takes care of everything in the field.

PET-7000 also features a built-in web server and the web HMI function. A built-in web server allows basic setting configuration, I/O monitoring and I/O control by simply using a regular web browser. Remote control is as easy as you surf the internet.

As to the web HMI function, no programming or HTML skills are required; creating dynamic and attractive web pages for I/O monitoring and I/O control would be fun for engineers ever after.

PET-7000 also supports Modbus/TCP protocol that makes perfect integration for PET-7000 to SCADA software.

Industrial PoE Solution

When using PoE devices like PET-7000, you can choose ICP DAS ¡§PoE¡¨ switch ¡X¡¨NS-205PSE¡¨ as the power source, NS-205PSE automatically detects the connected devices whether they are PoE devices or not. This mechanism ensures NS-205PSE to work with both PoE and non-PoE devices coordinately at the same time.

Being as a power source for PoE devices, NS-205PSE requires its power input ranging from +46 ~ +55VDC.

More information about PET-7000

There are two ways for PET-7000 getting the power. One is through Ethernet by a PoE switch; the other is as usual through wiring by an external power. External power should range from +12 ~ 48 VDC. The reason we keep the second way is because it might be useful if someday or somehow you have different applications.

There is a LED on PET-7000. The LED indicates whether the power comes from the PoE switch or not.
Built in Web Server

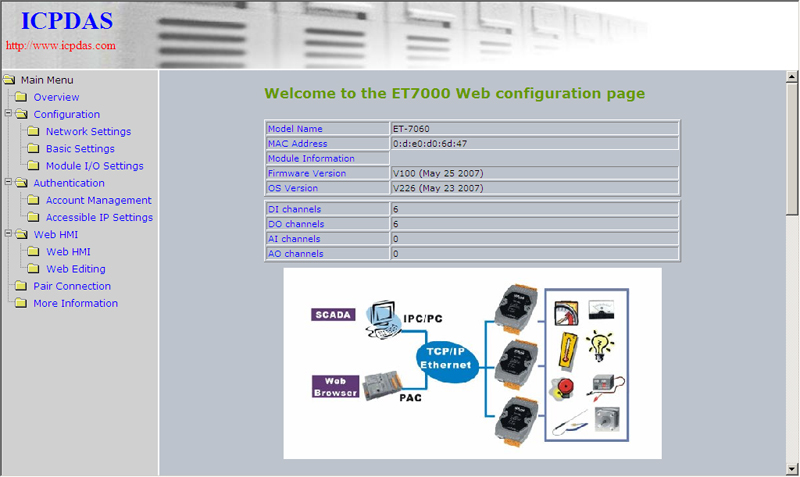

Each PET-7000 module has a built-in web server that allows users to easily configure, monitor and control the module from a remote location using a regular web browser.
The Web HMI function allows the users to create dynamic and attractive web pages to monitor and control the I/O points. Users can upload specific I/O layout pictures (bmp, jpg, gif format) and define a description for each I/O point. No HTML or Java skills are needed to create the web pages.
Communication Security
Account and password are required when logging into the PET-7000 web server. An IP address filter is also included, which can be used to allow or deny connections with specific IP addresses.
Modbus Protocol
The Modbus/TCP slave function on the Ethernet port can be used to provide data to remote SCADA software.
Built-in Multi-function I/O
All Digital Output modules provide :
  • Power on value (On boot up, the DO status is set to the Power-on value)
  • Safe value (If Modbus/TCP communication is lost for a certain period, the DO status will be set to the
         user defined safe value)
  • All Digital Input modules provide :
  • High/Low latched status
  • DI channels can also be used as DI status and 32-bit low speed (500Hz) counters.
  • All-in-one Module
    Various I/O components are mixed with multiple channels in a single module, which provides the most cost effective I/O usage and enhances performance of the I/O operations
    2-way Isolated Noise/Surge Protection
    To protect the hardware from damage caused by noise and surge, PET-7000 module is designed with isolation circuits for Ethernet, and I/O.
    Built-in Dual Watchdog
    The Dual Watchdog consists of a Module Watchdog and a Host Watchdog.
  • Module Watchdog is a built-in hardware circuit that can be used to monitor the operation of the
         module and will reset the CPU module if a failure occurs in the hardware or the software.
  • Host Watchdog is a software function that can be used to monitor the operating status of the
         host, and is used to prevent network communication problems or host failures
  • .
    Automatic MDI / MDI-X Crossover for Plug-and-play
    RJ-45 port supports automatic MDI/MDI-x that can automatically detect the type of connection to the Ethernet device without requiring special straight or crossover cables.
    Ventilated Housing Designed to Operate Between -25¢XC to +75¢XC
    PET-7000 is housed in a plastic-based shell/case with a column-like ventilator that helps to cool the working environment inside the shell/case and allows PET-7000 to operate at temperatures ranging from -25¢XC to +75¢XC.
    I/O Pair Connection
    This function is used to create a DI to DO pair through the Ethernet. Once the configuration is completed, PET-7000 module can poll the status of local DI channels and then use the Modbus/TCP protocol to continuously write to a remote DO device in the background.
