M-7033D Hardware
Internal I/O Structure
PIN Assignment
Wire Connection

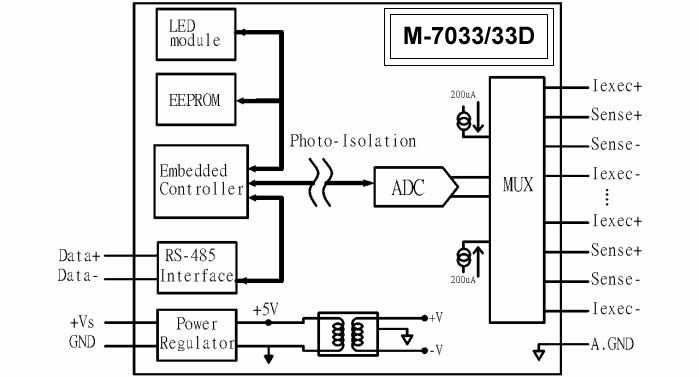

Internal I/O Structure
back

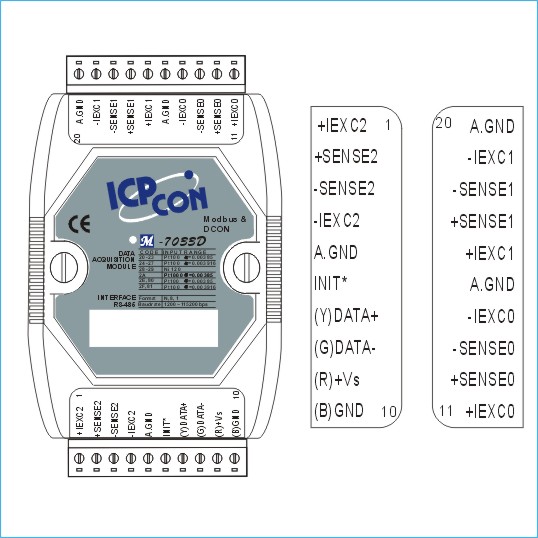

PIN Assignment
back
Wire Connection

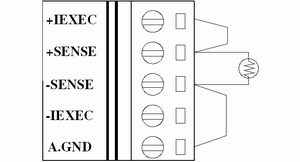

2-wire RTD Connection

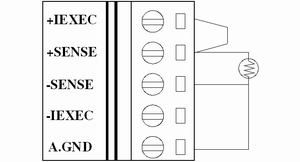

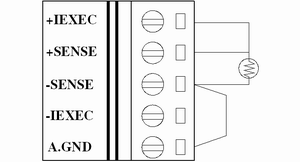

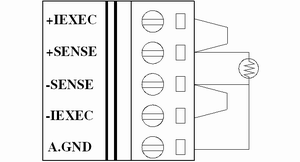

3-wire RTD Connection

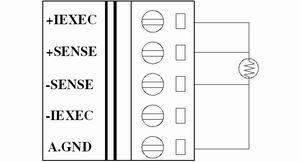

4-wire RTD Connection
back
