M-7019R Hardware
Internal I/O Structure
PIN Assignment
Wire Connection

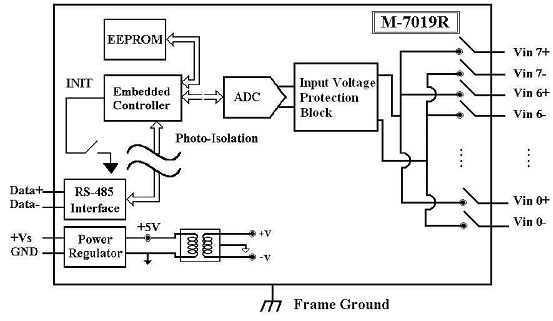

Internal I/O Structure
back

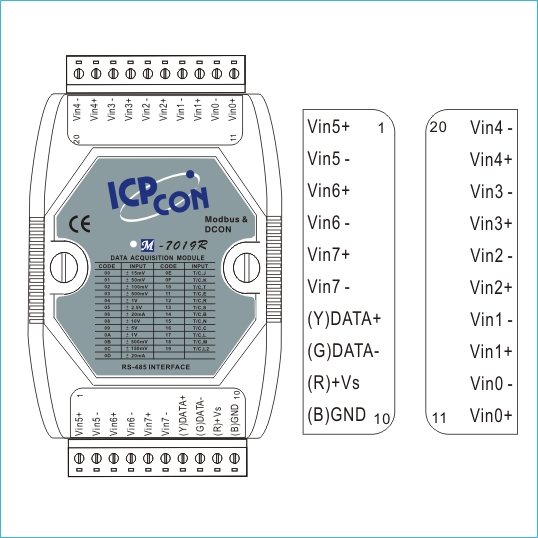

PIN Assignment
back
Wire Connection
Voltage Input
Current Input
Note:
When a channel is connected to a current source, the corresponding jumper should be shorted(need to
open the cover of the module), see section 1.7.2 of user manual for detail.
Thermocouple Input
back
