M-7017R Hardware

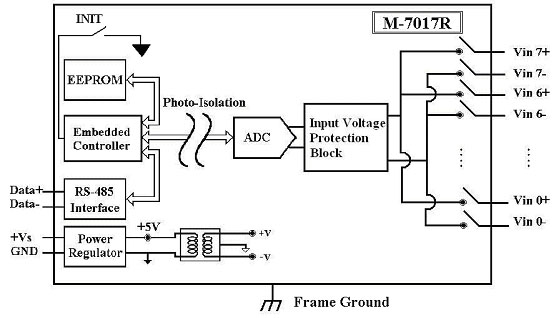

Internal I/O Structure

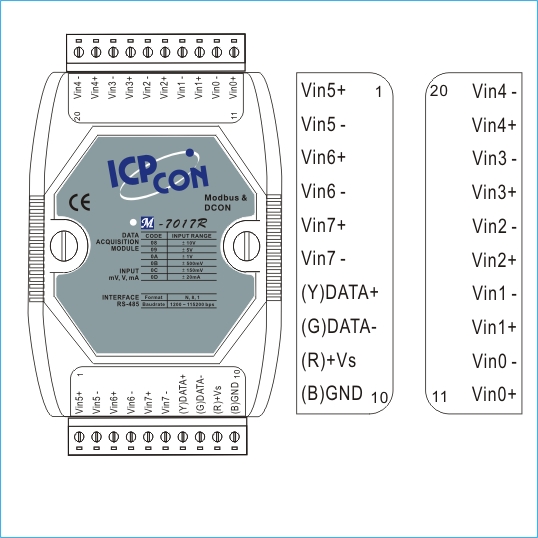

PIN Assignment
Wire Connection
Internal I/O Structure
back
PIN Assignment
back
Wire Connection

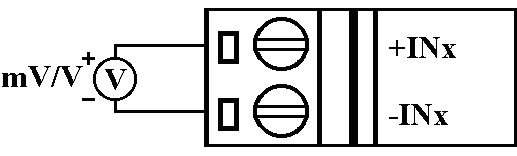

Voltage Input

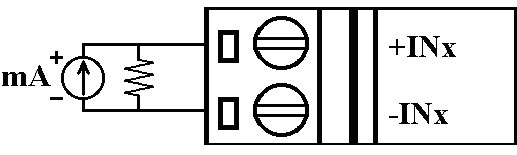

Current Input
Note: When connecting to a current source, an optional external 125-Ohm resistor is required.
back
