Model: I-8114H

I-8114H 4-port RS-232 Module with 80M CPU

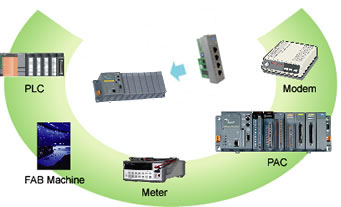

The I-81xx multi-port serial module enables user to install additional communication ports on the WinCon, LinCon, and I-8000. It’s the best choice for time-critical and reliably communications and controls on the industrial environment. For example: Communicates to PLC, FAB machine, meter, console management of devices, laboratory instruments and Modem link, etc.

The I-8114H intelligent communication module provides 4 independent and full-duplex RS-232 serial ports. It features a 16-bit 80186-80 CPU, 1KB Dual-port RAM, 512KB Flash, 512KB SRAM, MiniOS7 operating system and built-in communication firmware. Those features effectively reduce the CPU loading of the WinCon, LinCon, and I-8000 when communicating in high speed.

back

Parallel I/O Module	TXD, RXD, RTS, CTS, DSR, DTR, DCD, RI, GND
RS-232 Channels: 4	UART FIFO: 64bytes
Connector: 10-pin RJ-45	Transmission speed: 115.2K bps max.
16550 compatible	On board memory: 512KB SRAM, 512 KB Flash ROM
Microprocessor: 16-bit 80186, 80Mhz	Power Consumption: 3.6W
High speed 1 KB DPRAM	Include cable : CA-RJ0903 x 1
RS-232 firmware inside

back

I-8114H	4-port RS-232 Module with 80M CPU
Includes	CA-RJ0903 x 1

back

CA-RJ0903	9-pin Male D-sub & RJ-45 ,30cm Cable
CA-RJ1003	10-pin & RJ-45 ,30cm Cable
