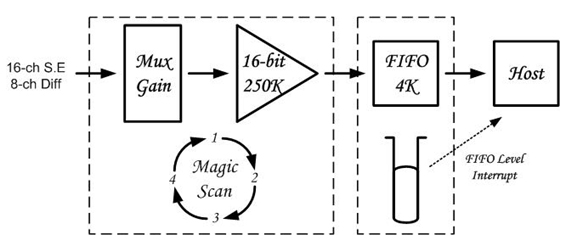

The I-8014W is a high performance analog input module. Up to 16-channel single-ended or 8-channel differential inputs can be connected to one module. It features 16-bit resolution, 250Ks/s sampling rates, and 4K-sample FIFO. It provides isolation protection of 2500 Vrms.

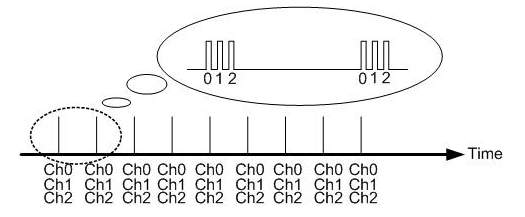

The I-8014W contains an impressive scan function called Magic Scan, which is able to improve many of the functions and meets the demands of high-end users. The Magic Scan mechanism not only scans the different input channels at vastly different rates, but also at different gains. Even in a multi-channel scan, the sampling rates can be maintained at 250KS/s. The I-8014W contains two types of Magic Scan. One is a standard Scan and the other is a virtual Sample and hold function. Almost all AI Cards are expensive if they provide a sample and hold function, but ICP DAS can now provide you with a low-cost alternative.

The I-8014W provides 4K-sample onboard FIFO buffer for AD. The new FIFO technology uses a trigger interrupt signal. Meaning that if the sample count is higher than the pre-defined FIFO level, an interrupt signal will notify the host.

High accuracy, a high-speed　sample rate, a high-level FIFO and all new Magic Scan technology are all included in the I-8014W,so It’s time to upgrade your analog input module to the I-8014W.
