I-8024 Hardware

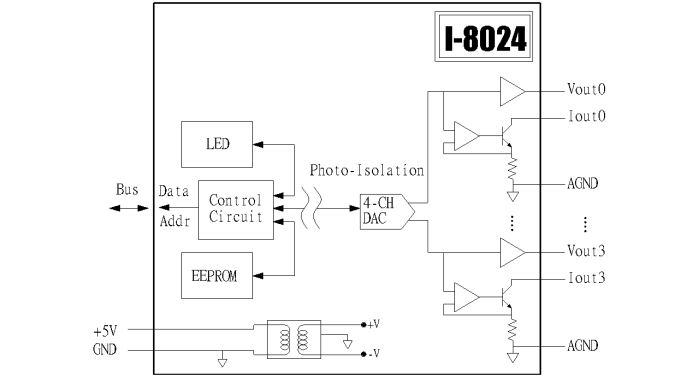

Internal I/O Structure

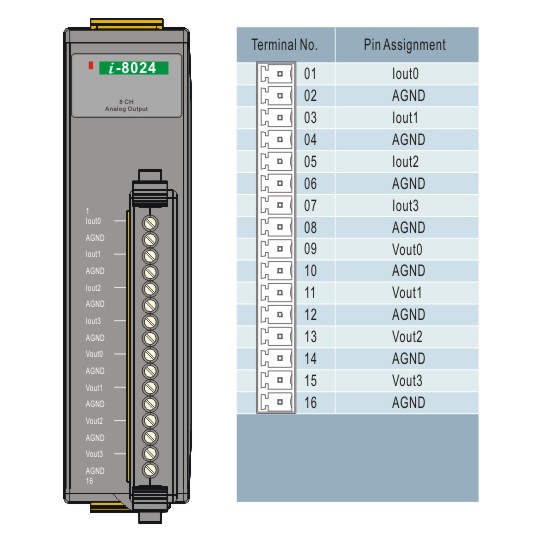

PIN Assignments





Wire Connection

I-8024W Voltage Output Wiring

I-8024W Current Output Wiring
