I-8017H Hardware

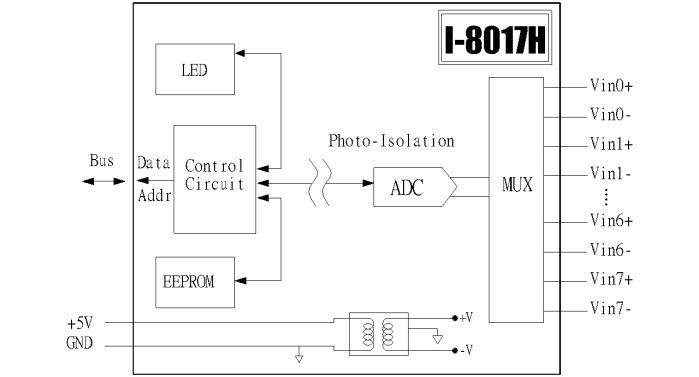

Internal I/O Structure

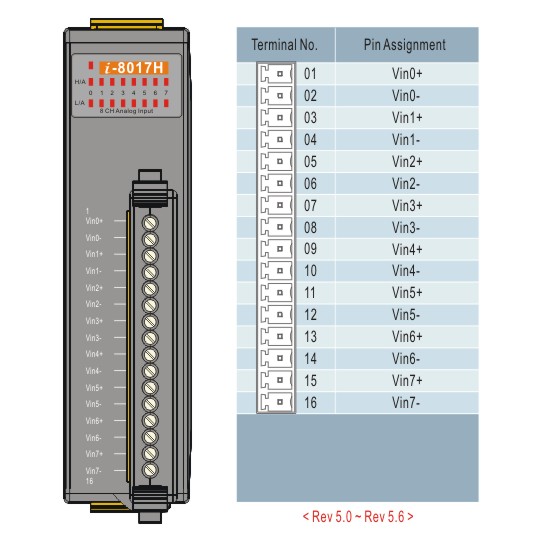

PIN Assignments





Wire Connection

I-8017H Voltage Input Wiring

I-8017H Current Input Wiring

Note: When connecting to a current source, an optional external 125-Ohm resistor is required.
