I-87057/I-87057(G) Hardware

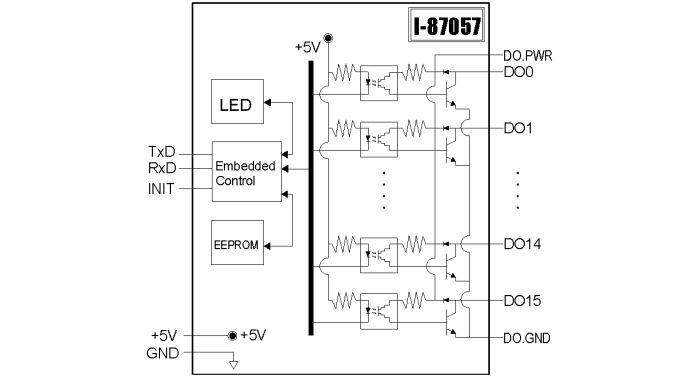

Internal I/O Structure

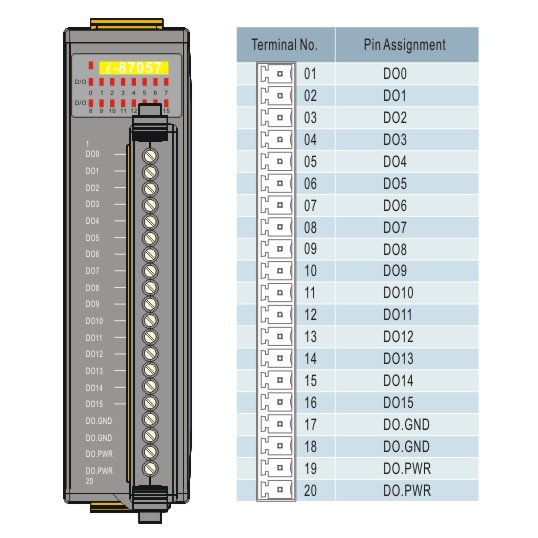

PIN Assignments





Wiring

Output Type ON State LED ON
Readback as 1		 OFF State LED OFF
Readback as 0
Drive Relay Relay ON Relay Off
Resistance Load
