I-87051/I-87051(G) Hardware







Internal I/O Structure

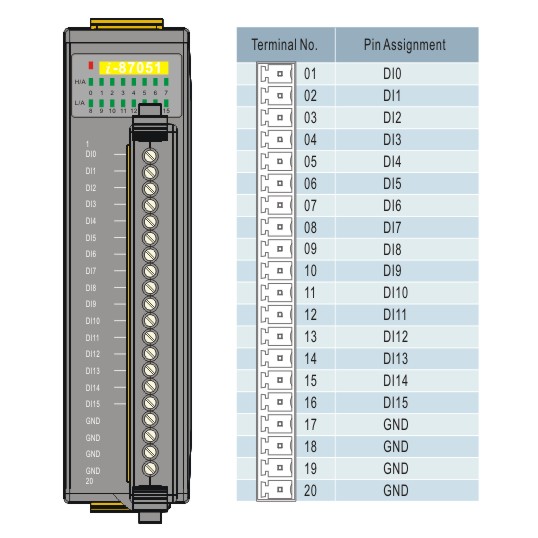

PIN Assignments





Wiring

Input Type ON State LED ON
Readback as 1		 OFF State LED OFF
Readback as 0
Relay Contact Relay ON Relay Off
TTL/CMOS Logic Voltage < 1V Voltage > 3.5V
Open
Collector		 Open Collector On Open Collector Off
