I-87026/I-87026(G) Hardware

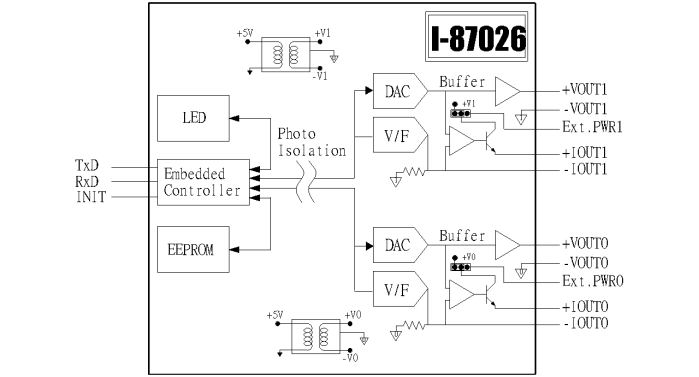

Internal I/O Structure

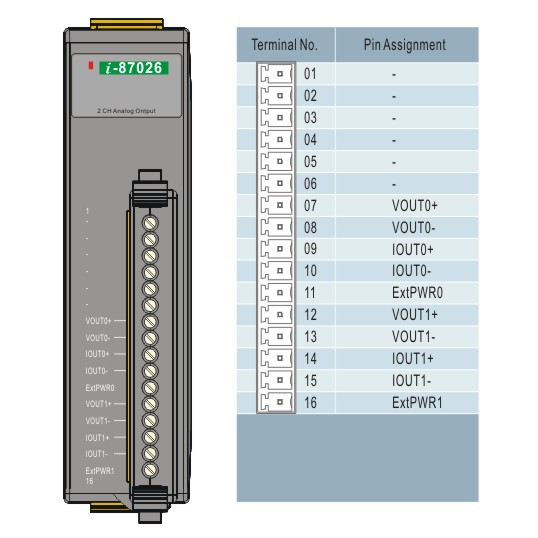

PIN Assignments





Wiring

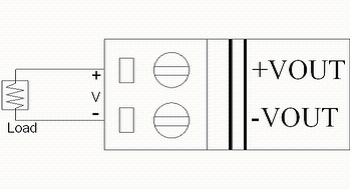

I-87026 Voltage Output Wire Connection

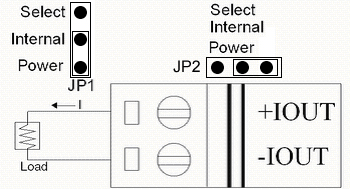

I-87026 Current Output Wire Connection
