I-87018W Hardware

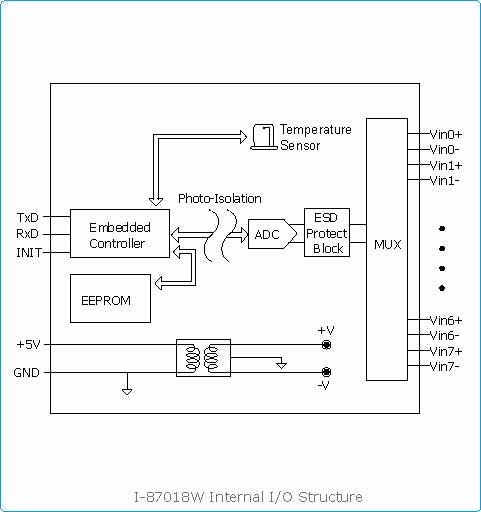

Internal I/O Structure

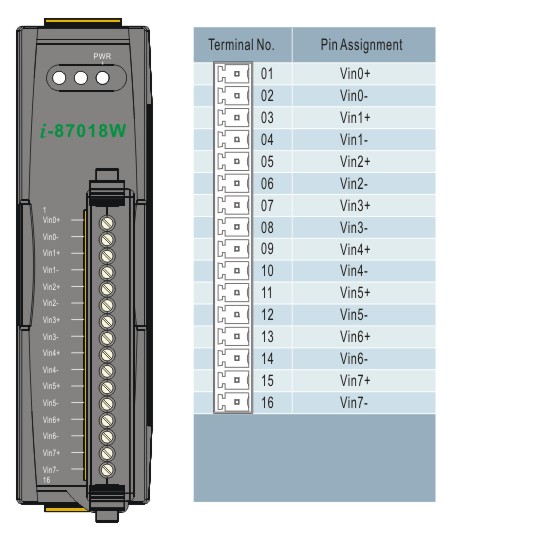

PIN Assignments





Wiring

I-87018 Voltage Input Wiring

I-87018 Current Input Wiring

Note: When connecting to a current source, an optional external 125-Ohm resistor is required.

I-87018 Thermocouple Input Wiring
