I-87017/ I-87017(G) Hardware

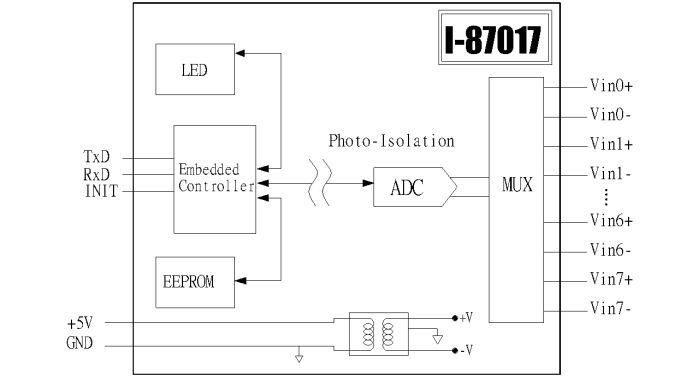

Internal I/O Structure
back

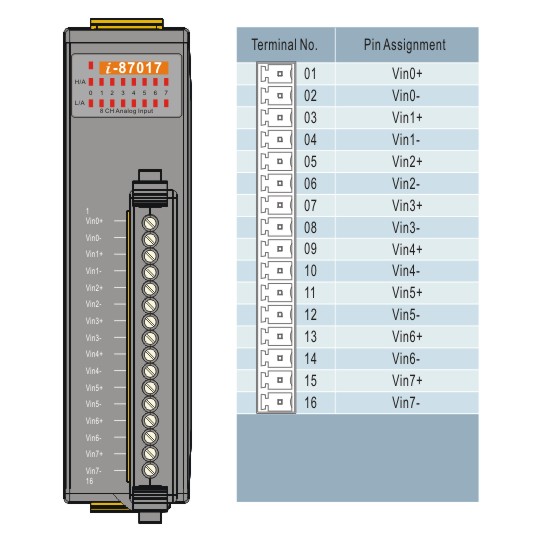

PIN Assignments
back
Wiring
I-87017 Voltage Input Wiring
I-87017 Current Input Wiring
Note: When connecting to a current source, an optional external 125-Ohm resistor is required.
