IKIT-01
Digital Control Learning Kit |
|
Purpose:
To use the RS-485 network to control digital I/O module |
|
Including:
I-7520x1
I-7060Dx1 |
| |
|
|
|
|
|
| |
|
|
| |
|

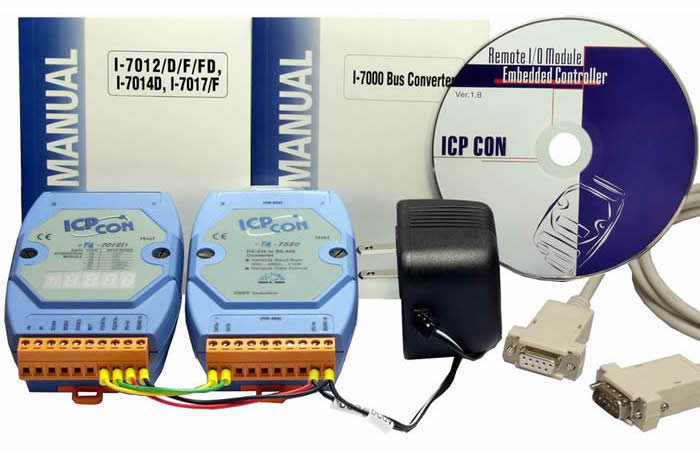

IKIT-02
Analog Learning Kit |
|
Purpose:
To use the RS-485 network to acquire analog signal |
|
Including:
I-7520x1
I-7012Dx |
| |
|
|
|
|
|
| |
|
|
| |
|
IKIT-03
RS-485 Network Learning Kit |
|
Purpose:
To use the RS-485 network to link PC and PLC via I-7520 RS-232 to RS-485 Converter |
|
Including:
I-7520x3 |
| |
|
|
|
|
|
| |
|
|
| |
|
IKIT-04
High Speed High Number Digital Control Kit |
|
Purpose:
To use the RS-485 network to control high number DI/O in high speed mode(16,000 channels per second) |
|
Including:
I-7520x1
I-7043Dx1
I-7053D_FGx1 |
| |
|
|
|
|
|
| |
|
|
| |
|
IKIT-05
High Speed High Number Data Acquisition Kit |
|
Purpose:
To use the RS-485 network to acquire high number analog input channel in high speed mode.
(I-7017 : 1704 channels/sec.
I-7018 : 1100 channels/sec.) |
|
Including:
I-7520x1
I-7017Fx1
I-7018Px1 |
| |
|
|
|
|
|
| |
|
|
| |
|
IKIT-06
Professional Kit |
|
Purpose:
This kit is designed for engineer to learn the implementation of network data acquisition and control system. |
|
Including:
I-7520x1
I-7060Dx1
I-7012Dx1
I-7021x1 |
| |
|
|
|
|
|
| |
|
|
| |
|

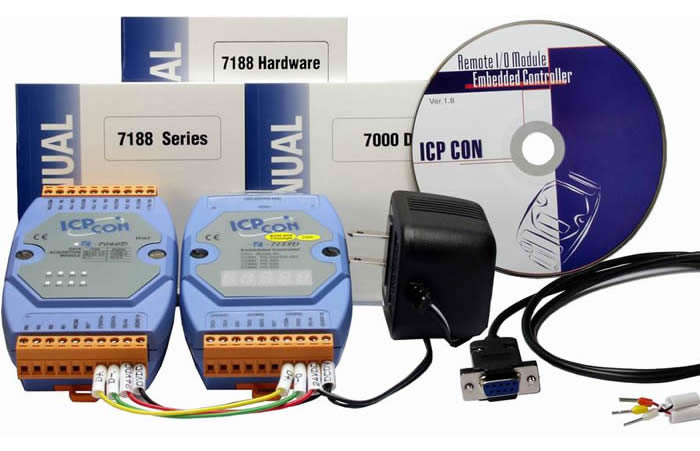

IKIT-07
Embedded Controller Kit |
|
Purpose:
Using I-7188 embedded controller to develop a digital control system. |
|
Including:
I-7188D/DOS
I-7060D
Download cable
SPU15A-6
Power Supply
I-7188 manual;7188 Demo Programs,utility disk of
ROM-DOS;NAPDOS Disk 14 |
| |
|
|
|
|
|
| |
|
|
| |
|
IKIT-08
Touch Panel Learning Kit |
|
Purpose:
Using I-7188EG embedded controller plus ISaGRAF-256 software and the Touch Panel to develop a digital control system. |
|
Including:
I-7188EGD
I-7060D
Touch 506L
ISaGRAF-256-E (or ISaGRAF-256-C)
software
Download cable
Power Supply
CD-ROM with Manual & Touch utility inside |
| |
|
|
|
|
|
| |
|
|
| |
| Note 1: |
Each kit includes NAP7000 Driver Pack , NAP7000S Manual , DB-9 to DB-9 Cable ,Power adapter |
| Note 2: |
There are 8 different learning kits for the user to learn the basic skill of network data acquisition and control modules.The user can use I-7000 modules to replace some PLC application system.It is also very easy to use analog modules to implement network data lgger. |
| Note 3: |
NAP7000 Driver Pack includes NAP7000S,NAP7000V,NAP7000D,NAP7000P,NAP7000X.The user can use NAP7000 Driver Pack to develop his own application program for the learning kit. |
|
|
| |
|
|
|
