I-7033/I-7033D Hardware

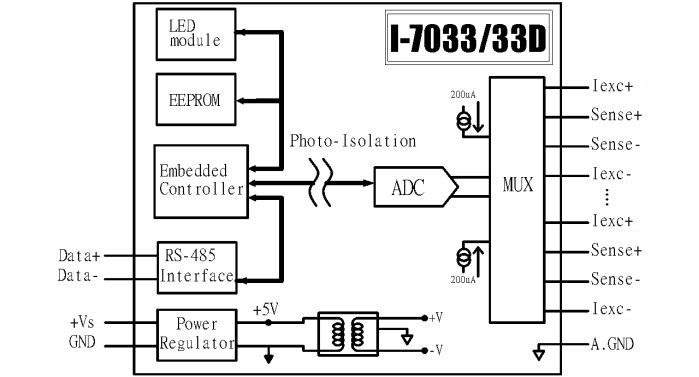

Internal I/O Structure
back

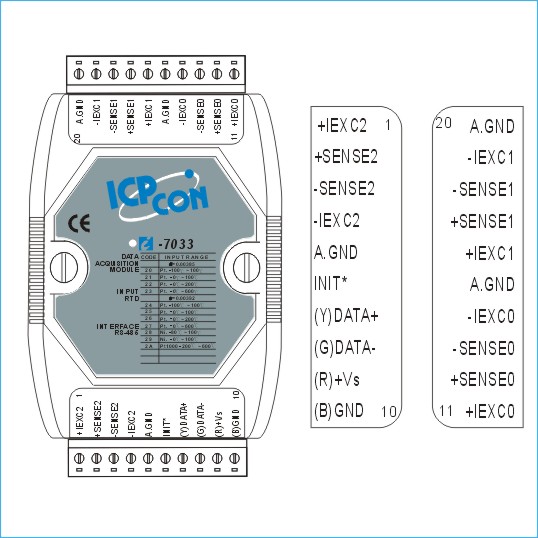

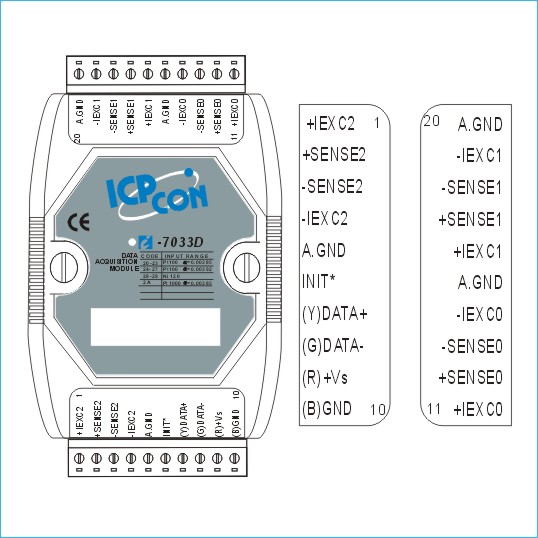

PIN Assignment
back
Wire Connection

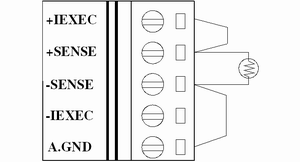

2-wire RTD Connection

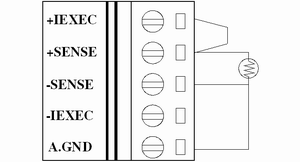

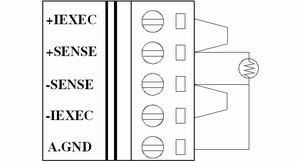

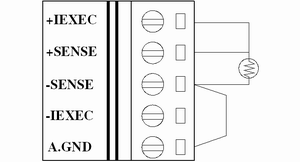

3-wire RTD Connection

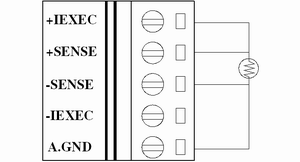

4-wire RTD Connection
back
