I-7018BL Hardware







Internal I/O Structure

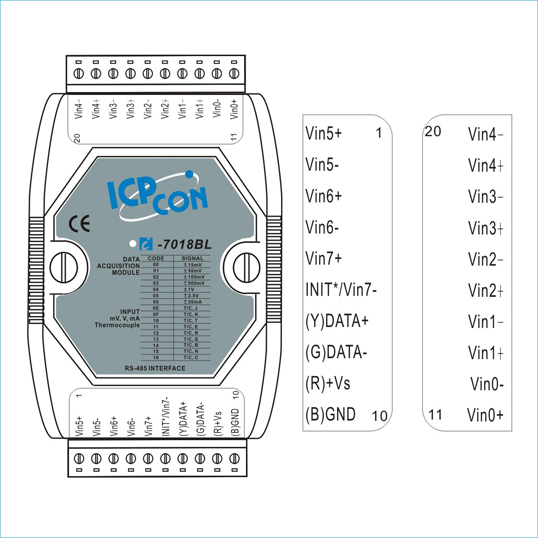

PIN Assignment





Wire Connection

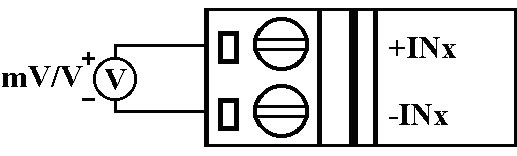

Voltage Input

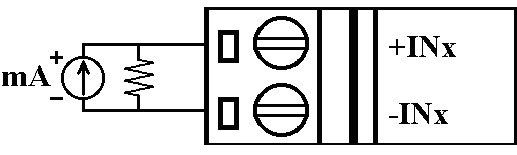

Current Input

Note: When connecting to a current source, an optional external 125-Ohm resistor is required.

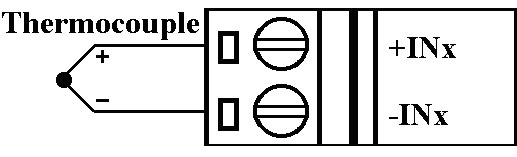

Thermocouple Input
