I-7017R Hardware

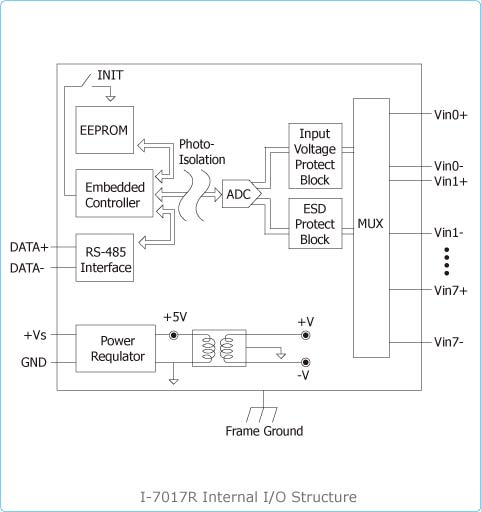

Internal I/O Structure
back

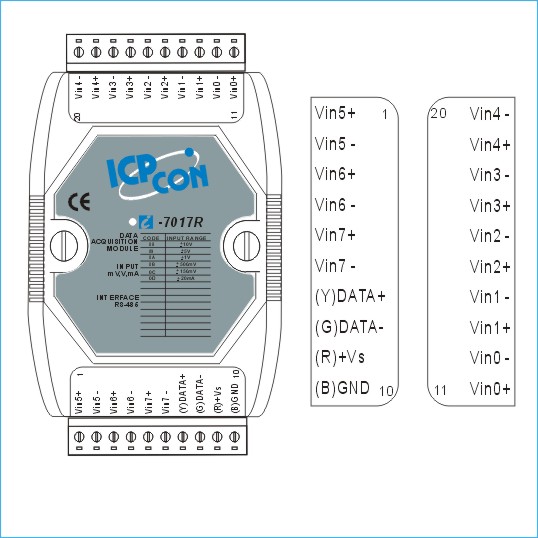

PIN Assignment
back
Wire Connection

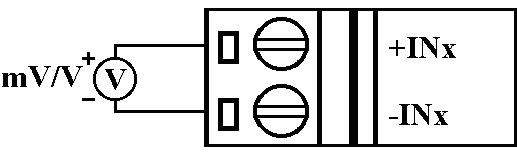

Voltage Input

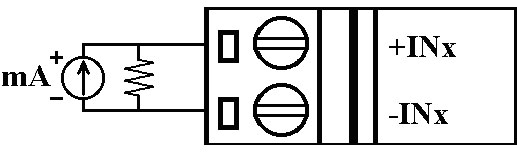

Current Input
Note:
When connecting to a current source, an optional external 125-Ohn resistor is required.
back
