Only one FRnet host-controller

Only one FRnet host-controller is required in an FRnet network

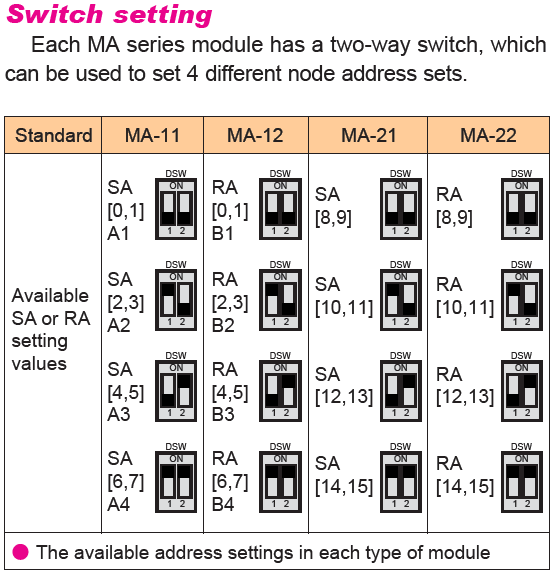

    The FRnet network only requires a single hostcontroller to send a token that activates all FRnet I/O modules. Two host controllers cannot be used in the same FRnet network. The MA-11, MD-11, FRB-100/200, I-7188EF, I-8122 and some FR I/O modules can be used as FRnet host-controllers. When using an MA-11, MD-11 or FR I/O module as a host-controller, the switch or jumper should be set to the A1 position. Refer to the related user's manual or literature for detailed information. When using the FRB-2000, I-7188EF or I-8122, the switch doesn't have to be set.

Which MA series MagicWire module to select
    The MA-11and MA-21 are input type modules that work with output type PLC modules. The MA-12 and MA-22 are output type modules that work with input type PLC modules. For long-distance digital output extension applications, the user must select an MA-11 and set the jumper switch to the A1 position. The companion module can be either an MA-12 or other appropriate FR module. When the user wishes to input a remote signal, the MA-12 or other appropriate companion module should be selected. The MA-11 or some FR modules can be selected as the companion module. Of course, in accordance with the basic operating principles of FRnet, this FR module or MA-11 should be set as a host controller.

How to achieve 1- N configuration
    Several FR output modules can be set to the same address and then modules in the same FRnet network can be connected. In this 1-N hardware configuration, the MA-11 can send the same information to all FR output modules at the same time. The 1-N configuration can be used for several output modules, but cannot be used for several input modules.

MA series MagicWire can network Mitsubishi compatible PLC systems
    Besides the long-distance I/O extension feature, the MA-1X module can network Mitsubishi compatible PLC systems. The MagicWire modules enable your PLC to talk to each other via DIO ports. Choosing appropriate MagicWire modules, the user can upgrade a nonnetworking controller to have the networking capability. The MA-2X alone can't be used in this kind application. They should work with a host. Since different PLCs have different connectors and pin-assignments, the user should choose appropriate FR I/O modules.

Networking configurations
    The modules with same switch settings belong to the same group. The modules of the same group can have data transmission between them. The modules of different groups can't communicate with each other. But modules of different groups can be connected to the same FRnet bus.
