Functional Description

    The FR-32C has 32-channel open collector output. Not like traditional digital I/O board, the FR series I/O module has an FRnet interface. It can be used as a distributed remote I/O module or a MagicWire module. The user should select the correct setting when using these modules. The user can daisy chain several FRnet modules together. Via FRnet, the FRnet modules can work with PC, PAC, μPAC and PLC easily. Further information about the networking of FR-32C, refer to our I-7188EF, I-8172, FRB-100/200.

• Factory Automation
• Building automation
• Energy management
• Agriculture automation

• Communication speed: 250K bps
• Communication distance: 400m max
• Number of channels: 32
• Open-collector: each chanenl 30V@650mA
• Power Requirement: 10~30V
• Wire cable: CPEV 0.9S (2P Twisted-pair wire)
• Power consumption:
  24V@140mA(max)
• Operating temperature: -25°C ~ +75°C
• Operating humidity: 10% ~ 90% RH, non-condensing
• Storage temperature: -30°C ~ +85°C
• Storage humidity: 5% ~ 95% RH, non-condensing
• Dimensions:
  173 mm x 117 mm (FR-32C)

• Built-in FRnet interface
• Real I/O synchronization
• Innovative token-stream technology
• Support Broadcasting
• Real Deterministic Control
• Fixed Scan time: 256 points @ 2.88 ms
• Each bank consists of 8 input channels and has its own ground reference
• ASIC design without CPU
• Memory-map I/O
• No protocol and no software overhead
• Easy Programming and OS-independent
• Din-rail mounting
• Two-Wire Cabling
• Jumper setting

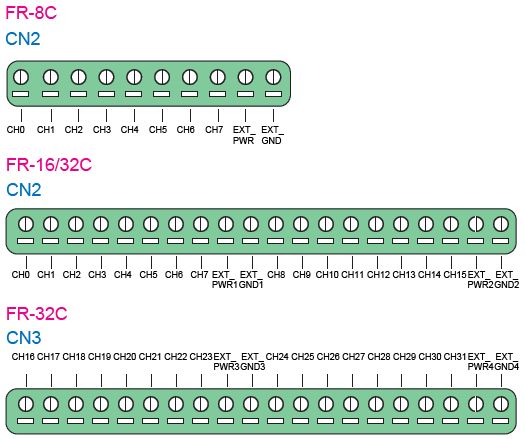

• Interface circuit
