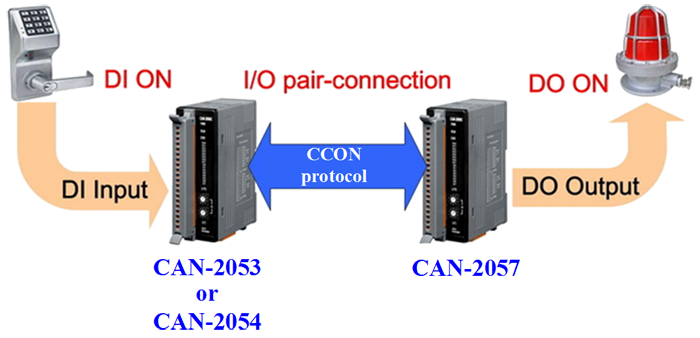

CCON Slave Module of 16-channel isolated digital output (open-collector)






CCON protocol is one of the application layer protocol on the CAN bus. It was developed by the ICP DAS Co., LTD.

CCON protocol is a simple and effective protocol for industrial automation applications. Based on the CAN bus layer, it could provide many safe and robust communication mechanisms like arbitration, error detection, error correction and etc. It could help to establish the CAN networking application fast and easily. The CCON I/O modules could reply their own real-time I/O information to the controller at regular intervals automatically. In other word, the controller could acquire all remote modules in short time. It makes the communication more efficient when collecting a lot of remote I/O information.

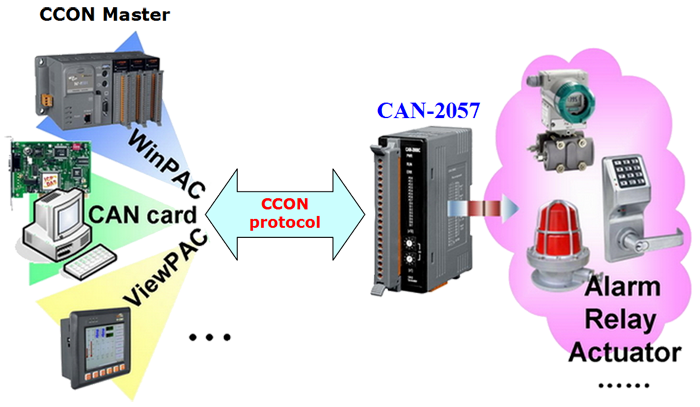

CAN-2057 module is easy to access the digital Output status and set the configuration by using standard CCON protocol. CAN-2057 has 16-channel isolated sink output, and it can be used to various applications, such as PNP, NPN, TTL, relay contact and so forth. By owing to the CCON masters of ICP DAS, you can quickly build a CCON network to approach your requirements.

http://www.icpdas.com/products/Remote_IO/can_bus/can_list.htm#CCON
















CAN Interface
Connector 5-pin screwed terminal block (CAN_GND, CAN_L, CAN_SHLD, CAN_H, CAN_V+)
Baud Rate (bps) 10 k, 20 k, 50 k, 125 k, 250 k, 500 k, 800 k, 1 M
Terminator Resistor Switch for 120 £[ terminator resistor
Node ID 1~99 selected by rotary switch
Protocol CCON ver2.00
Digital Output
Channels 16 (Sink)
Load Voltage +5 ~ +30 VDC
Output Type Open-Collector
Reaction Time 200 us
LED
Round LED PWR LED, RUN LED, ERR LED
Terminal Resister 1 LED as terminal resister indicators
DO LED 16 LEDs as digital output indicators
Power
Input range Unregulated +10 ~ +30 VDC
Power Consumption 1.5 W
Mechanism
Installation DIN-Rail
Dimensions 32.3 mm x 99 mm x 77.5 mm (W x L x H)
Environment
Operating Temp. -25 ~ +75 ¢J
Storage Temp. -30 ~ +80 ¢J
Humidity 10 ~ 90% RH, non-condensing
