CAN-2017C / CAN-2017D Hardware

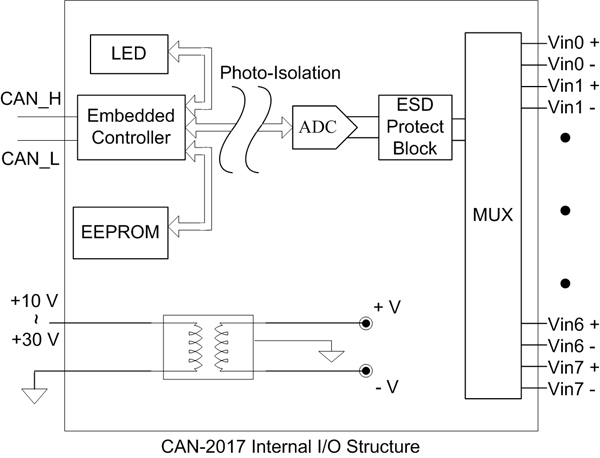

Internal IO Structure

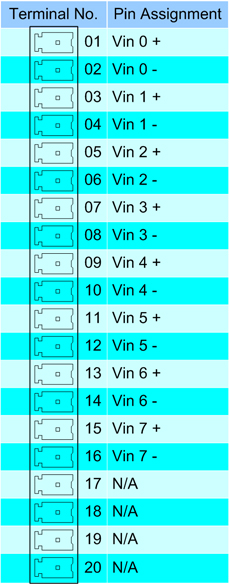

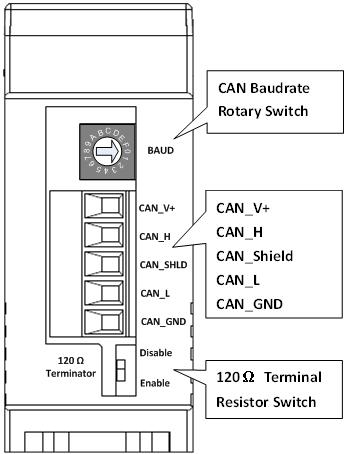

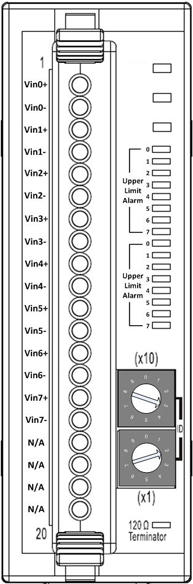

PIN Assignments

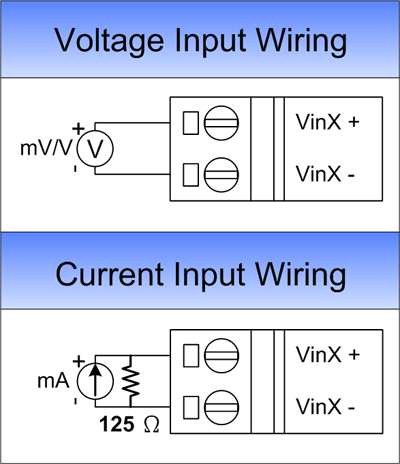

Wire Connection


Note: When connecting to a current source, an optional external 125-Ohn resistor is required.
