EtherNet/IP
    EIP-2055






    EtherNet/IP









EIP-2055
~ NEW ~

Isolated 8-ch DI and 8-ch DO EtherNet/IP I/O module

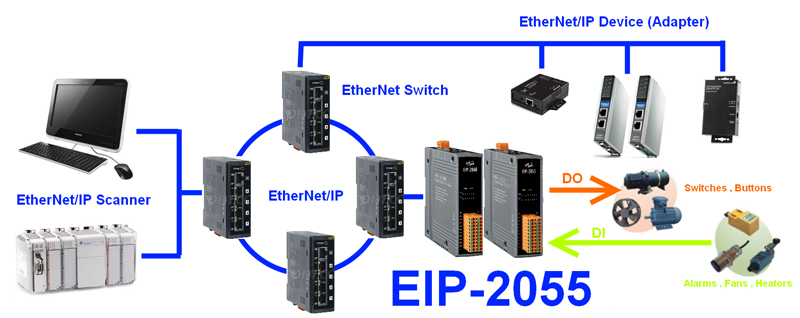

The EIP-2000 is an industrial remote I/O module series supporting the EtherNet/IP protocol. Users can seamlessly integrate these modules into the Ethernet network from the industrial floor to the enterprise. The EIP-2000 allows daisy chain connection which permits the flexibility in locating devices, eases installation and lowers infrastructure costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation design protects the EIP-2000 against the harmful interference.

The EIP-2055 is a remote digital I/O module with 8 inputs and 8 outputs. It is designed as an EtherNet/IP adapter. Users can obtain the I/O status as well as the connection status of the EIP-2055 by the LEDs. In addition, ICPDAS provides software utility to easily configure and test the EIP-2000 modules via Ethernet.







  • Building Automation
  • Factory Automation
  • Machine Automation
  • Remote Maintenance
  • Remote diagnosis
  • Testing Equipment






  • Transfer protocol: EtherNet/IP
  • Powerful 32-bit MCU handles efficient network traffic
  • 10/100 Base-TX Ethernet, RJ-45 x 2 (Auto-negotiating, auto MDI/MDIX, LED Indicators)
  • Support ARP,TCP, UDP, ICMP, DHCP, BOOTP and TFTP protocols
  • Easy firmware update via Ethernet
  • Removable terminal block connector
  • LED indicators to display the I/O status
  • Built-in I/O
    • DI/Counter: 8 Channels
    • DO: 8 Channels
  • Power-On Value
  • Safe Value
  • RoHS compliant








ICP DAS provides the EIP-2000 configuration utility for Windows 2K/XP/Vista and Win 7.

  • Network parameters configuration
  • Settings for power-on value and safe value
  • DI counters inspection
  • Easy test to transmit/receive the I/O status by EtherNet/IP
  • Setting files management







Digital Input
Channels 8
Input Type Dry Contact: Source, Wet Contact: Sink / Source
Dry Contact Level Off Voltage Level: Open
On Voltage Level: Close to GND
Wet Contact Level Off Voltage Level: +4V max.
On Voltage Level: +10 V ~ +50 V
Counters Channels 8
Max. Counts 32-bit (4294967295)
Max. Input Frequency 5KHz
Photo-Isolation 3750 VDC
Digital Output
Channels 8
Isolation Voltage 3750 VDC
Type Open Collector
Sink/Source(NPN/PNP) Sink
Load Voltage +3.5 ~ +50 V
Max. Load Current 700mA per channel
Communication Interface
Connector 10/100 Base-TX, 8-pin RJ-45 x 2
Support daisy chain connection
Standard Supported IEEE 802.3 Ethernet/IP
Power
Input Voltage Range 10V ~ 30V
Power Consumption 1.6W
Mechanism
Installation DIN-Rail
Dimensions 110mm x 90mm x 33mm (H x W x D)
Environment
Operating Temperature -25¢J ~ +75¢J
Storage Temperature -30¢J ~ +80¢J
Humidity 10% ~ 90%







EIP-2055 CR
Isolated 8-ch DI & 8-ch DO EtherNet/IP I/O Module







MSM-6226 CR
24-Port L2 Plus Managed Fast Ethernet Switch + 2 TP/SFP Gigabit Dual Media (RoHS)
NS-205 CR
Unmanaged 5-Port Industrial Ethernet Switch (RoHS)
NS-205PSE CR
Unmanaged Ethernet Switch with 4 PoE Ports and 1 RJ-45 Uplink (RoHS)
NS-205PSE-24V CR
Unmanaged 5-Port 10/100 Mbps PoE(PSE) Ethernet Switch; 24 VDC Input
NSM-205PSE-24V CR
Unmanaged 5-Port 10/100 Mbps PoE(PSE) Ethernet Switch with Metal Casing; 24 VDC Input
