| Models |
XP-8041/XP-8041-CE6 |
XP-8341/XP-8341-CE6 |
XP-8741/XP-8741-CE6 |
| System Software |
| OS |
Microsoft Windows Embedded Standard 2009
(including SQL Server 2005 Express; Internet Information Service 5.1)
/ Microsoft Windows Embedded CE 6.0 |
| CPU Module |
| CPU |
AMD LX 800 processor |
| System Memory |
1 GB DDR SDRAM (Standard 2009) / 512 MB DDR SDRAM (CE 6.0) |
| Dual Battery Backup SRAM |
512 KB (for 5 years data retention) |
| Flash |
4 GB as IDE Master |
| EEPROM |
16 KB |
| Data Retention: 40 years; 1,000,000 erase/write cycles |
| CF Card |
8 GB (support up to 32 GB) |
| 64-bit Hardware Serial Number |
Yes |
| Dual Watchdog Timers |
Yes |
| Rotary Switch |
Yes (0 ~ 9) |
| DIP Switch |
- |
Yes (8 bits) |
| VGA & Communication Ports |
| VGA |
Yes (resolution: 1600 x 1200, 1024 x 768, 800 x 600, 640 x480) |
| Ethernet |
RJ-45 x 2, 10/100 Base-TX
(Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| USB 2.0 |
2 |
| COM 1 |
RS-232 (RxD, TxD and GND); non-isolated |
Internal communication with I-87K modules in slots |
| COM 2 |
RS-232 (RxD, TxD and GND); non-isolated |
| COM 3 |
RS-485 |
D2+, D2-; self-tuner ASIC inside |
| Isolation |
3000 VDC |
| COM 4 |
RS-232/RS-485 (RxD, TxD, CTS, RTS and GND for RS-232, Data+ and Data- for RS-485); non-isolated |
| COM 5 |
RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); non-isolated |
| I/O Expansion Slots |
| Slot Number |
0 slot |
3 slots |
7 slots |
Hot Swap
* Will be available soon |
- |
For high profile I-87K modules only |
| Mechanical |

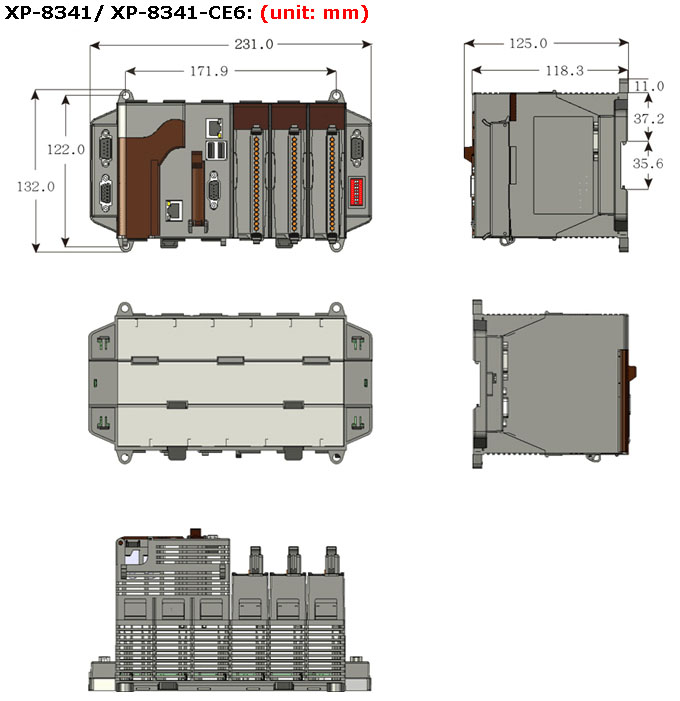

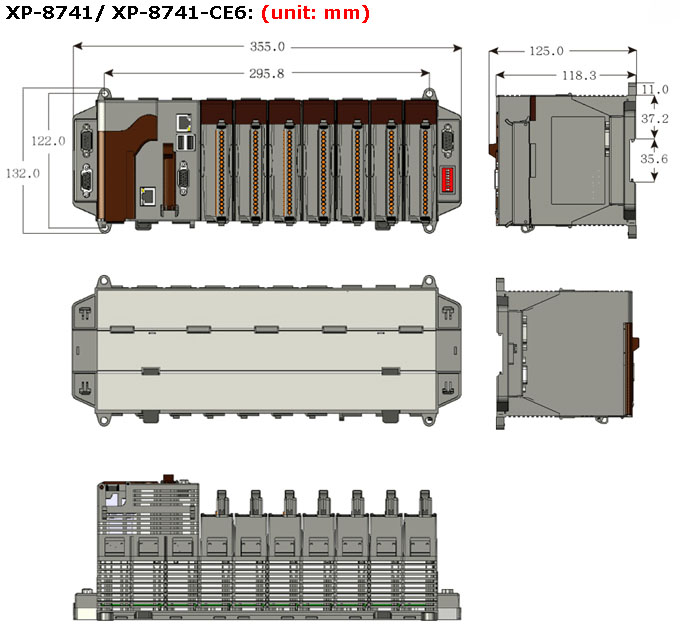

| Dimensions (W x L x H) |
137 mm x 132 mm x 125 mm |
231 mm x 132 mm x 125 mm |
355 mm x 132 mm x 125 mm |
| Installation |
DIN-Rail or Wall Mounting |
| Environmental |
| Operating Temperature |
-25 ~ +75 ¢XC |
| Storage Temperature |
-30 ~ +85 ¢XC |
| Ambient Relative Humidity |
5 ~ 90% RH, non-condensing |
| Power |
| Input Range |
10 ~ 30 VDC |
| Isolation |
1 kV |
| Redundant Power Inputs |
Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Capacity |
1.8A, 5V supply to CPU and backplane, total 15 W |
1.8A, 5V supply to CPU and backplane, 5.2A, 5V supply to I/O expansion slots, total 35 W |
2.0A, 5V supply to CPU and backplane, 5.0A, 5V supply to I/O expansion slots, total 35 W |
| Consumption |
14.4 W (0.6 A @ 24 VDC) |
14.4 W (0.6 A @ 24 VDC) |
16.8 W (0.7 A @ 24 VDC) |
