Multi-serial LinPAC

Introduction
LinPAC support N-Port modules such as I-8112iW, I-8114W, I-8144iW, etc. And they provide multiple serial ports respectively. In this way, users can use more serial ports in the LinPAC-8000 and the expanded maximum number of serial port in the LinPAC-8000 will be thirty-fore.
The LinPAC-8000 is a multi-tasking uint, therefore users can control all the serial ports simultaneously.

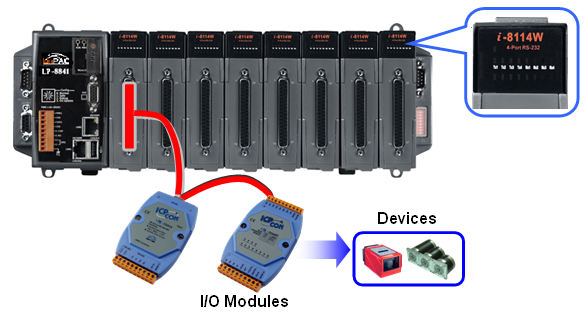

To get more RS-232/485/422 ports, user can plug one or more “multi serial port module” in the I/O slot.

Multi serial port module

Item	RS-232	RS-422/485	Isolation	Connector
I-8112iW	2	-	2500 Vrms	DB-9 x 2
I-8114W	4	-	-	DB-37 x 1
I-8114iW	4	-	2500 Vrms	DB-37 x 1
I-8142iW	-	2	2500 Vrms	Terminator block x 1
I-8144iW	-	4	2500 Vrms	Terminator block x 1
