The LinPAC-5000 is the latest generation Linux based PAC of ICP DAS. It's an embedded system controller which is dedicated to industrial control.

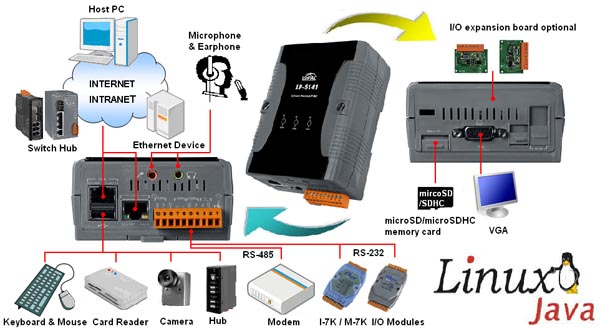

LinPAC-5000 series is a palm-sized PAC. It equips with a PXA 270 CPU (520MHz) running a Linux kernel 2.6.19 operating system, various connectivity (VGA, USB, Ethernet, RS-232/RS-485 and audio ports) and I/O expansion board optional for high performance parallel I/O modules (high profile I-8K series) and serial-type I/O modules (high profile I-87K I/O modules) or implement various I/O functions such as D/I, D/O, A/D, D/A, Timer/Counter, UART, flash memory, battery backup SRAM, etc.
Compared with the first generation LinCon-8000 of ICP DAS, it not only improves the CPU performance (from 206 MHz to 520 MHz) and upgrading OS (from Linux kernel 2.4 to Linux kernel 2.6), but also adds many reliability features, such as dual LAN, audio ports, I/O expansion board optional, etc. They give users all of the best features of both traditional PLCs and Linux capable PCs. That's the most powerful and flexible embedded control system. |
|
| |
|
|
| |
 |
|
| |
|
|
| |
2009, the year of PACs! |
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
|
|
| |
[ Development Environment ]
LinPAC SDK :
ICPDAS provides the library file — libi8k.a which includes all the functions of the I-7000/8000/87k series modules. Users just install LinPAC SDK in Windows PC, the cygwin environment will be established automatically and users can develop LinPAC-5000 Applications easily by GNU C Language. Otherwise, users can also use Java to develop LinPAC applications.
Note: Cygwin is a Linux-like environment for Windows.
[ Built-in Server ]
Web Server :
Through these servers, users active web pages can be placed in the LinPAC and make LinPAC be a Web Site.
Ftp Server, Telnet Server, SSH Server:
Through these servers, users can remote control and transfer files with LinPAC by encrypting mode.
UPnP :
UPnP allows automatic discovery and control of services available on the network from other devices without user intervention.
[ Supported Communication ]
Wireless LAN, PPP over Modem, GPRS, Ethernet, Dual LAN,
LinPAC can be connected to internet by Wireless, Modem, GPRS or Ethernet method and users can also combine two LAN via LinPAC.
VxComm :
With VxComm Server in the LinPAC, users can remote control RS-232/422/485 COM ports in the LinPAC via users' PC.
Expansion serial ports :
With the I-8000 communication modules and I/O expansion board, LinPAC-5000 can handle expansion serial ports.
Support USB to Serial Converter --- 7560、7561 、7563 :
When 7560/61/63 converter module is plugged in the LinPAC, the additional com port will be added in the LinPAC including RS-232/485.
[ Security ]
Unique Serial Number：
As soon as “Unique Serial Number” added in users' program, then users' program will be locked for this LinPAC.
[ Java ]
JVM, JIOD( Java I/O Driver) :
Users can also use Java Language to Write/Compile l/O program in the LinPAC.
[ Interpreter ]
Perl, PHP :
The program written by Perl and PHP interpret language can be also executed in the LinPAC.
[ GUI ]
GTK+ Library
Users can write LinPAC GUI programs by using GTK+ library.
[ Audio ]
Microphone-In and Earphone-Out
Adjustable volume and tone control allow for superior sound.
[ Other ]
USB WebCam :
When WebCam is plugged in the LinPAC, the video will show by using built-in video program.
RAM Disk :
Users' programs can be saved in four places of LinPAC including: RAM, microSD, microSDHC, Flash memory
Resolution : 32 bit 800 x 600
There are one resolution mode supported in the LinPAC.
OEM LinPAC Boot Logo |
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
|
|
| |

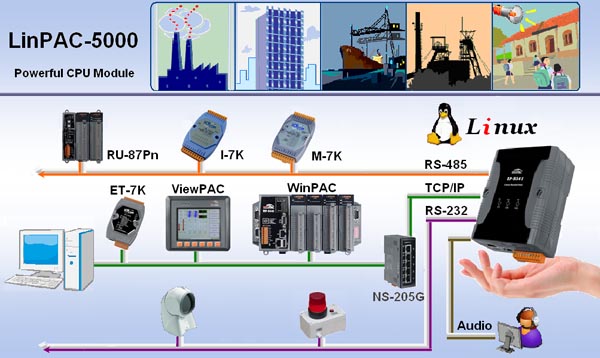

• Multimedia Server • Application Server • Build Automation
•Protocol converter • On-Board Diagnostic(Car/Boat) • Navi |
|
| |
|
|
| |
 |
|
| |
|
|
|
|
|
| |
