| The ICP DAS KinCon (KinCon-8045/8345/8745) is a WinCE based SoftLogic PAC, with Windows CE OS and popular, flexible programming software: KW-software, Microsoft EVC++ and VS.NET 2003(VB.NET & C#.NET).
KinCon supports KW-software, with multitasking & online change features, which can fast design multitasking real time PLC control system, and online change PLC tasking. These features let the world leading automation companies (such as ABB, Fuji, Hitachi, Mitsubishi, KukaˇK) rely on for years.

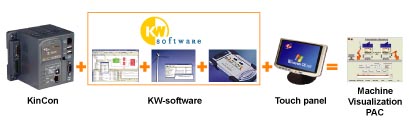

KinCon supports ProVisIT machine visualization, which is a low cost |
| alternative to HMI and VB programming. It features with hierarchic mapping of screens and available in Traditional/ Simplified Chinese, English, GermanˇKlanguage. Conjugating with Touch panel (GA-700YY-UOM/USB), itˇ¦s a complete and integrated HMI automation system. |
 |
|
|
| |
|
|
| |
|
Built-in Windows CE.net real time system, Intel Strong ARM CPU , |
| |
206 MHz, 64 MB SDRAM, 32MB FM, 16KB EEPROM |
| Supports KW-MULTIPROG 4.0 IEC61131 design system,, |
| |
which has 32 bit interface and supports distributed control system. It includes the languages: IL, ST, LD, FBD, SFC & MSFC with integrated diagnosis. Hundreds of function blocks were built-in for various application designing. |
| With logic analyzer, |
| |
user can analyze the logic of procedure, generate a curve-diagraph by recording variables, and pre-check the result before leading in the procedure. |

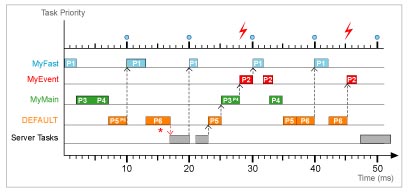

| Built-in KW-ProConOS SoftLogic, does support fast multitasking, |
| |
interrupts and up to 16 PLC tasks preemptivescheduling. Each PLC task can be set a watchdog for supervision. Incase of a realtime violation an additional associated user program can be executed.
 |
| Online changes |
| |
with modification of program parts while the PLC is running. The features of multitasking, multilingual, multi-user make KinCon suitable for PID, temperature control, remote IO, communicationˇKvarious industrial applications. |
| Supports KW-ProVisIT2.3 machine visualization, |
| |
which features with embedding of other ActiveX control & VB script programming, MULTIPROG variables browsing, libraries and hierarchic mapping of screens, and online language switching. With Touch panel (GA-700YY-UOM/USB), itˇ¦s easy & fast to work out a perfect HMI automation system.
 |
| More IO selections. |
| |
K-8045 with 0 IO-slot supports RS-485 Remote IO Units; K-8345/8745 with 3 / 7 IO-slots support I-8K & I-87K I/O boards. There are more than 50 selections including DI, DO, AI, AO, Relay, Counter, frequency, Thermo-couple, RTD, thermistor, MotionˇK. More I/O can be expanded by I-7000/I-87K series remote I/O modules or M-7000 series I/O via RS-485 port. |
| More interface ports. |
| |

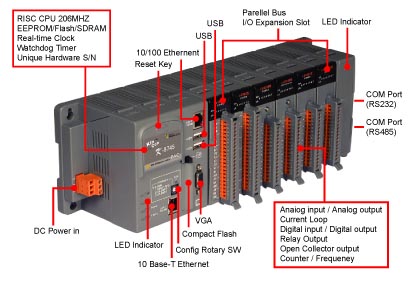

1 VGA port for monitor, dual USB ports for USB mouse, HD etc., dual 10/100m Ethernet ports for higher network performance, 1CF slot for CF card, and 1 Rotary switch for multitasking switching. It is easy, familiar to everyone with its PC-like Windows environment.
 |
| Supports retain variables & battery backup memory. |
| |
User can optionally add S-256/S-512 to retain more data. |
| Default has one COM2:RS-232 & one COM3:RS-485. |
| |
The serial communication port can be more by adding extra I-8112/8114/8142i/8144 multi-serial boards. (RS-232, RS-485 or RS-422, up to 10 ports) |

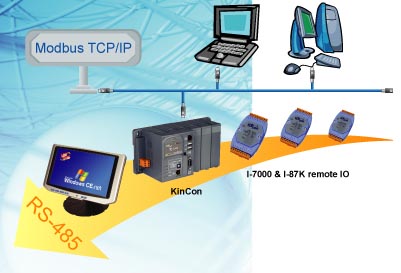

| Supports Modbus TCP/IP Master protocol. |
| |
Up to 8 PC/HMI /OPC Server & touch panel can connect with COM2(or COM3) & Ethernet port via TCP/IP at the same time.
 |
| Supports Multi RS-485 ports |
| |
to connect to M-7000 series Modbus Remote I/O modules. I-8K & I-87K D/I/O boards have LED to display I/O status. COM3 supports I-7000 & I-87K remote IO. |
| Supports serial port read/write function blocks |
| |
to communicate with various serial devices. |
| Built-in 1 Rotary switch. |
| |
Provide 16 modes for multitasking switching. 8 of 16 modes are provided for user's definition
 |

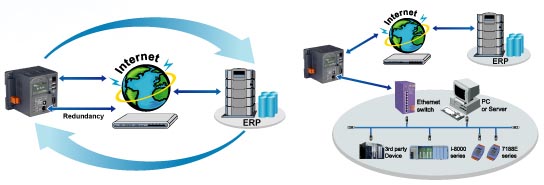

| Dual Ethernet ports |
| |
implement network redundant policies and segments separation for safe network security.
 |
|
|
| |
|
|
| |
| Ordering Information |
|
| KinCon PAC |
 |
K-8045 |
0-slot KinCon PAC, dual Ethernet dual USB, support
KW-software |
 |
K-8345 |
3-slot KinCon PAC, dual Ethernet dual USB, support KW-software |
 |
K-8745 |
7-slot KinCon PAC, dual Ethernet dual USB, support
KW-software |
KW-Software |
 |
MULTIPROG 4.0 |
KW-software MULTIPROG 4.0 IEC 61131 programming system, with 6 PLC languages |
 |
OPC-Server 2.0 |
KW-software OPC-Server 2.0ˇAOPC software |
 |
ProVisIT 2.3 |
KW-software ProVisIT 2.3 machine visualization |
Options |
 |
GA-700YY-UOM / USB |
7ˇ¨ TFT RS-232 / USB LCD Monitor w/
VGA & Touch Panel |
 |
S-256 / S-512 |
256K / 512Kbytes battery backup SRAM
(K-8045 doesnˇ¦t support S-256 / S-512) |
| Serial D/I counter |
I-87K D/I module: I-87040, 87051, 87052, 87053, 87054, 87055, 87058, 87063 |
| Remote D/I counter |
All I-7000 & I-87K D/I modules |
| High speed counter |
I-87082: 100kHz max. 32 bit, I-8080:
450kHz. 32 bit |
|
|
|
| |
|
|
| |
| Specifications of K-8045/8345/8745 |
|
| Development software |
KW-MULTIPROG 4.0 |
KW-Software IEC61131 PLC programming system,
Language: LD,ST,IL,FBD,SFC,MSFC |
KW-OPC-Server 2.0 |
KW-software OPC software |
KW-ProVisIT 2.3 |
KW-software machine visualization |
Non-KW-software |
Options: Microsoft EVC++4.0 or VS.NET 2003
(VB.NET, C#.NET) |
| Power supply |
Power requirements |
+10 ~ +30 VDC (unregulated), 20W (when IO slots
are empty) |
Protection |
Built-in power protection & network protection circuit |
General
environment |
Temperature |
Operating: -25˘XC ~ +55˘XC ,:Storage: -35˘XC ~ +85˘XC |
Humidity |
5~90% (non-condensed) |
| System |
CPU |
Intel Strong ARM CPU, 206MHZ |
OS |
Windows CE.NET 4.1 |
Watchdog time |
Yes |
Real time clock |
read/write hour, minute, second, date of week, date
of month, month & year |
SDRAM |
64M bytes |
Flash Memory |
32M bytes |
Compact Flash Card |
1Compact Flash slot, default with 128M bytes of CF
card |
EEPROM |
16K bytes, retention > 100 years, 1,000,000
erase/write cycles |
I/O slots |
K-8045: 0, K-8345: 3, K-8745: 7, I/O slots accept
I-8K parallel & I-87K serial I/O boards |
VGA port |
1 VGA port, resolution: 320x240x16 to 1024x768x16,
default is 640x480x16 |
USB port |
2 USB 1.1 Host port, for USB drive, mouseˇK |
|
Rotary switch |
1 rotary switch & 1 ˇĄRUN' LED. Provide 16 modes
for normal, clear registry, OS update, PLC tasksˇK
Modes. 8 of 16 modes are provided for user's
definition.
|
Reset button & LED |
1 reset button & 1 power LED |
Unique serial number |
64-bit hardware unique serial number |
NET ID |
From 1 to 255, set by software |
| Serial ports |
COM1 |
Internal use for I-87K serial I/O boards of
K-8345/8745. K-8045 has no COM1 |
COM2 |
RS-232,9-Pin.Speed:115200 bps max |
COM3 |
RS-485, 2-wire. Speed:115200 bps max, D+, D- |
Ethernet |
2 10M/100M bps Base T Ethernet ports |
| Counter |
Serial D/I
counter |
Counter input: 100Hz max. Counter value: 0 to
65535 (6 bit) Optional serial I-87K D/I boards:
I-87040,87051,87052,87053,87054,87055,
87058,87063 |
Remote D/I
counter |
All remote I-7000 & I-87K D/I modules support
counters. 100Hz max. Value: 0 to 65535 |
High speed counter |
I-87082: 100kHz max. 32 bit I-8080: 450kHz. 32 bit |
| Protocols |
Modbus RTU
slave protocol |
One of COM2 or COM3 supports Modbus RTU
slave (serial) protocol for KW connecting to PC,
software and monitor. (available soon) |
Modbus TCP/IP
protocol |
Ethernet port supports Modbus TCP/IP slave
protocol for KW connecting to PC, software and
monitor. |
I-7000&I-87K
remote I/O |
COM3 supports I-7000 RS-485 remote I/O modules
& I-87K RS-485 remote I/O Units(I-87K base +
I-87xxx serial I/Oboards). max: 255
RS-485 remote
I/O for one controller |
M-7000 series
Modbus
I/O |
COM3 & COM5~COM14(if I-8142/8142i/8144 are
plugged) support M-7000 series Modbus RS-485
remote I/O modules. Max: 10
RS-485 ports, 247
M-7000 modules per port. |
Modbus master
protocol(multi-port) |
COM2, COM3, or COM5~COM14(if I-8112/8114/
8142/8142I/ 8144 are plugged) supports
multi-port of Modbus RTU/ASCII master protocol
to connect to other Modbus slave devices.
(available soon) |
User defined protocol |
User can write his own protocol applied at COM2,
COM3 & COM5~COM14(if multi-serial port boards
are plugged) |
Battery backup
SRAM |
S-256 / S-512 |
S-256/S-512, retain data up to 4096 variables. Note: K-8045 doesnˇ¦t supports S-256/S-512. |
| File access |
CF card |
The Compact Flash card can be used for storing
runtime data & any controller setting with file
operation. |
| Dimensions |
Size (L x H x D) |
K-8045: 114x110x90, K-8345: 229x110x90,
K-8745: 354x110x90 unit: mm |
|
|
|
| |
|
|
| |
|
|
|
|
|
|
