X518 |
|
|
|
|

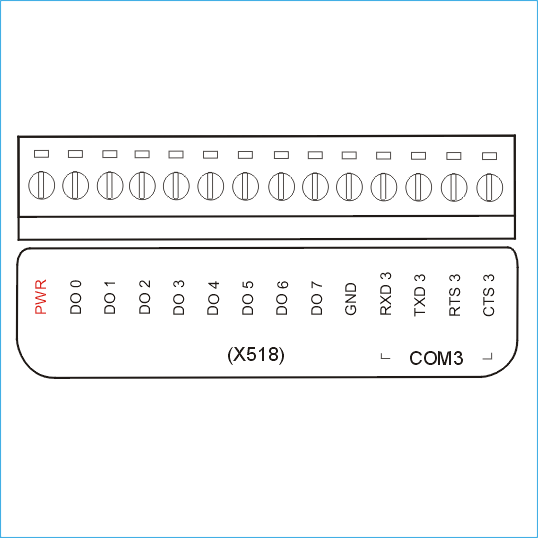

X518
(For I-7188XB/XG/EX/EG, £gPAC-7186EX/EG/FD/SM) |
|
|
|
|
|
|
|
|
| |
|
|
|
| |
|
|
|
|
|
|
|
 |
|
|
|
| |
Parallel I/O
- RS-232 port : 1
- COM3 : TXD, RXD, RTS, CTS, GND
- 16550 compatible
- Internal FIFO : 16 bytes
- Transmission speed: 115.2K BPS max.
- Isolated : none
|
|
| |
|
|
|
|
|
| |
|
|
| |
Digital Output
- Channels: 8
- Open-collector Output : 100 mA / 30V max
- Isolated : none
|
|
| |
|
|
|
|
|
| |
|
|
| |
Ordering Information
| X518 |
1-Port RS-232 ( 5-Pin ) add 8-channel D/O |
| X518 CR |
1-Port RS-232 ( 5-Pin ) add 8-channel D/O (RoHS) |
|
|
| |
|
|
| |
|
|
|
|
|
|
