Power consumption : 0.7 W

Parallel I/O

• RS-232 port : 1

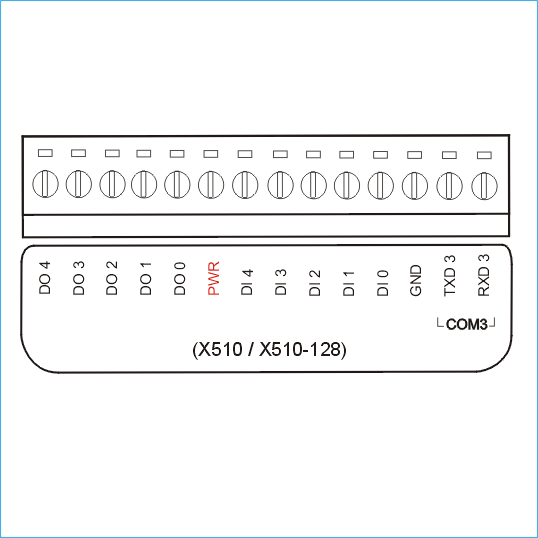

• COM3 : TXD, RXD, GND
• 16550 compatible
• Internal FIFO : 16 bytes
• Transmission speed: 115.2K BPS max.
• EEPROM: 128K * 2 bytes
  Endurance:100,000 Write Cycles/Page
  Data Retention: 40 Years
• Isolated : none

Digital Input

• Channels : 5
• Input Voltage:
  Logic high level (3.5V~30V),
  Logic low level (0V~1V)
• Isolated : none

Digital Output

• Channels: 5
• Open-collector Output : 100 mA / 30V max
• Isolated : none
