X506 |
|
|
|
|
X506
(For 7188XB,7188XG,7188EX,7188EG,£gPAC-7186EG) |
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
|
|
|
|
 |
|
|
|
| |
Power consumption : 0.7 W |
|
| |
Parallel I/O

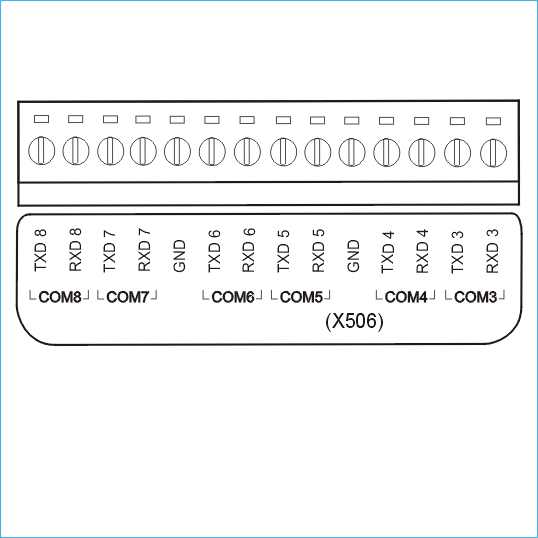

- RS-232 ports : 6
- COM3 : TXD, RXD, GND
- COM4 : TXD, RXD, GND
- COM5 : TXD, RXD, GND
- COM6 : TXD, RXD, GND
- COM7 : TXD, RXD, GND
- COM8 : TXD, RXD, GND
- 16550 compatible
- Internal FIFO : 16 bytes for each COM port
- Transmission speed: 115.2K BPS max.
- Isolated : none
|
|
| |
|
|
|
|
|
| |
|
|
| |
Ordering Information
| X506 |
6-Port RS-232 ( 3-Pin ) |
| X506 CR |
6-Port RS-232 ( 3-Pin ) (RoHS) |
|
|
| |
|
|
| |
|
|
|
|
|
|
