X502
X502
(For 7188XC)

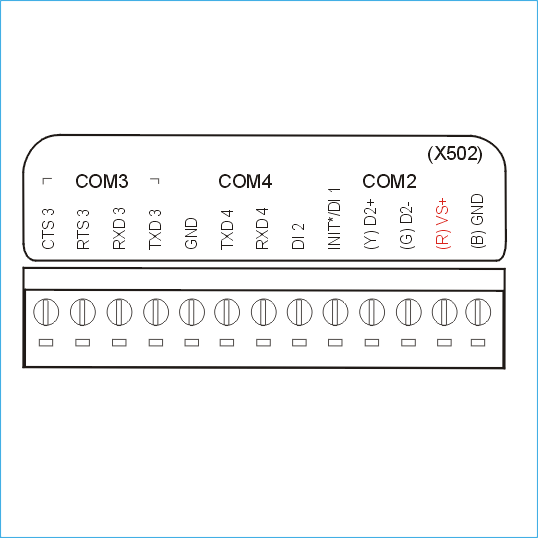

PIN Assignment






Power consumption : 0.4 W




Parallel I/O

  • RS-232 ports : 2
  • COM3 : TXD, RXD, RTS, CTS, GND
  • COM4 : TXD, RXD, GND
  • 16550 compatible
  • Internal FIFO : 16 bytes for each COM port
  • Transmission speed: 115.2K BPS max.
  • Isolated : none





Ordering Information

 X502  2-Port RS-232 ( 5-Pin ) and ( 3-Pin)
 X502 CR  2-Port RS-232 ( 5-Pin ) and ( 3-Pin) (RoHS)
