~NEW~ |
| |
| |
| |
|
 |
| |

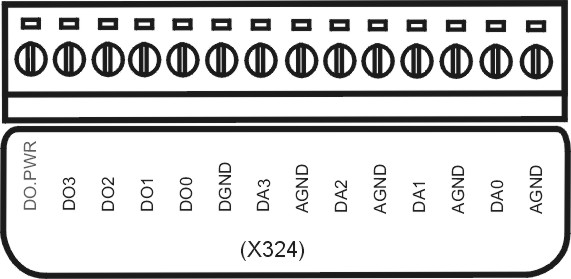

X324 |
|
|
|
|
X324
(For I-7188XB/XG/EX/EG, £gPAC-7186XB/XG/EX/EG-FM/SM/SD/FD,
£gPAC-7186XB/XG/EX/EG-FM/SM/SD/FD) |
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
 |
|
|
|
| |
|
|
| |
| Analog Output |
| Output Channels |
4 |
| Output Type |
0 ~ +5 V |
| Resolution |
12-bit |
| Output Capacity |
20mA |
| Isolation Voltage |
Non-isolation |
| Digital Output |
| Output Channels |
4 |
| Output Type |
Open-Collector (NPN) |
| Load Voltage |
+30VDC, Max |
| Load Current |
100mA, Max |
| Isolation Voltage |
Non-isolation |
| Other specifications |
| Dimensions |
64 mm x 38 mm |
| Power requirement |
+5VDC |
| Environment |
| Operating Temperature |
-25 ~ +75 ¢J |
| Storage Temperature |
-40 ~ +80 ¢J |
| Relative Humidity |
5% to 90% Non-condensing |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
| X324 CR |
4-channel D/A ( 0~10V) add 4-channel D/O (RoHS) |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
|
|
