~ NEW ~ |
| |
| |
| |
|
 |
| |
X308 |
|
|
|
|
X308
(For I-7188XB/XG/EX/EG, £gPAC-7186XB/XG/EX/EG-FM/SM/SD/FD,
£gPAC-7186XB/XG/EX/EG-FM/SM/SD/FD) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
| |
|
|
| |
| Analog Input |
| Input Channels |
4 |
| Input Type |
0 ~ +10 V |
| Resolution |
12-bit |
| Sampling Rate |
1KHz Max(Read one channel) |
| Input Impedance |
2M Ohm |
| Over voltage Protection |
+/- 30VDC |
| Isolation Voltage |
Non-isolation |
| Digital Output |
| Output Channels |
6 |
| Output Type |
Open-Collector (NPN) |
| Load Voltage |
+30VDC, Max |
| Load Current |
100mA, Max |
| Isolation Voltage |
Non-isolation |
| Other specifications |
| Dimensions |
64 mm x 38 mm |
| Power requirement |
+5VDC |
| Environment |
| Environment with
I-7188XC or £gpac-7186 series Casing |
Operating Temperature : -25 ~ +75 ¢J |
| Storage Temperature : -40 ~ +80 ¢J |
| Relative Humidity : 5% to 90% Non-condensing |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |

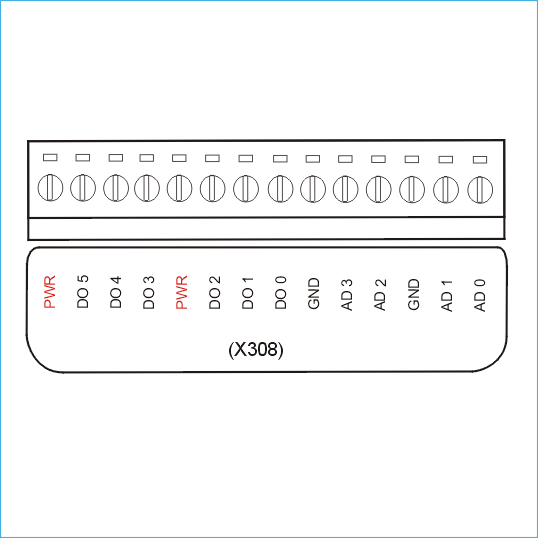

| X308 |
4-channel A/D ( 0~10V) add 6-channel D/O |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
|
|
|
