X303 |
|
|
|
|
X303
(For I-7188XB/XG/EX/EG, £gPAC-7186EX/EG/FD/SM) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
| |
|
|
| |
| Analog Input |
| Input Channel |
1 |
| Input Type |
+/- 5V |
| Resolution |
12-bit |
| Sampling Rate |
1KHz Max |
| Input Impedance |
50K Ohm |
| Over voltage Protection |
+/- 5VDC |
| Isolation Voltage |
Non-isolation |
| Analog Output |
| Output Channel |
1 |
| Output Type |
+/- 5V |
| Resolution |
12-bit |
| Output Capacity |
10mA |
| Isolation Voltage |
Non-isolation |
| Digital Output |
| Output Channels |
6 |
| Output Type |
Open-Collector (NPN) |
| Load Voltage |
+30VDC, Max |
| Load Current |
100mA, Max |
| Isolation Voltage |
Non-isolation |
| Digital Input |
| Input Channel |
4 |
| Input Type |
Sink, non-isolated channel with common ground |
| Off Voltage Level |
+1V max |
| On Voltage Level |
+3.5V ~ +30VDC |
| Isolation Voltage |
Non-isolation |
| Other specifications |
| Dimensions |
64 mm x 38 mm |
| Power requirement |
+5VDC |
| Environment |
| Environment with
I-7188XC or £gpac-7186 series Casing |
Operating Temperature : -25 ~ +75 ¢J |
| Storage Temperature : -40 ~ +80 ¢J |
| Relative Humidity : 5% to 90% Non-condensing |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |

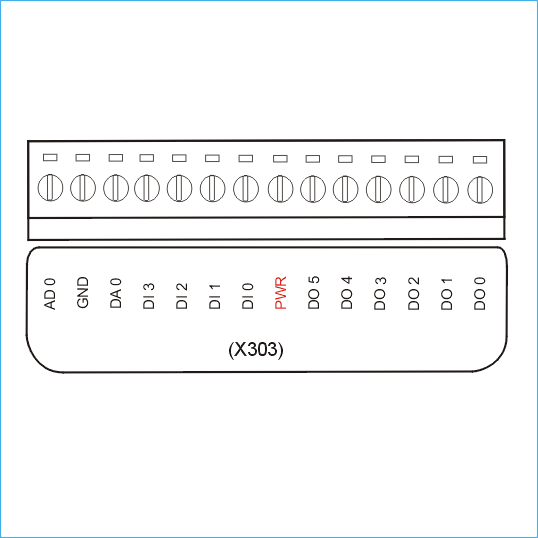

| X303 |
1-channel A/D ( +/-5V), 1-channel D/A ( +/-5V) add 4-channel D/I, 6-channel D/O |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
|
|
|
|
