X301 |
|
|
|
|
|
|
|
|
 |
|
|
|
| |
|
|
| |
| Analog Input |
| Input Channels |
1 |
| Input Type |
0 ~ 2.5 V |
| Resolution |
12-bit |
| Sampling Rate |
200KHz Max |
| Input Impedance |
1K Ohm |
| Over voltage Protection |
+30VDC |
| Isolation Voltage |
Non-isolation |
| Analog Output |
| Output Channels |
1 |
| Output Type |
0 ~4.095 V |
| Resolution |
12-bit |
| Settling time |
1.4us |
| Output Capacity |
20mA |
| Isolation Voltage |
Non-isolation |
| Other specifications |
| Dimensions |
64 mm x 32 mm |
| Power requirement |
+5VDC |
| Environment |
| Environment with
I-7188XC or £gpac-7186 series Casing |
Operating Temperature : ¡V25 ~ +75 ¢J |
| Storage Temperature : ¡V30 ~ +80 ¢J |
| Relative Humidity : 10% to 90% Non-condensing |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |

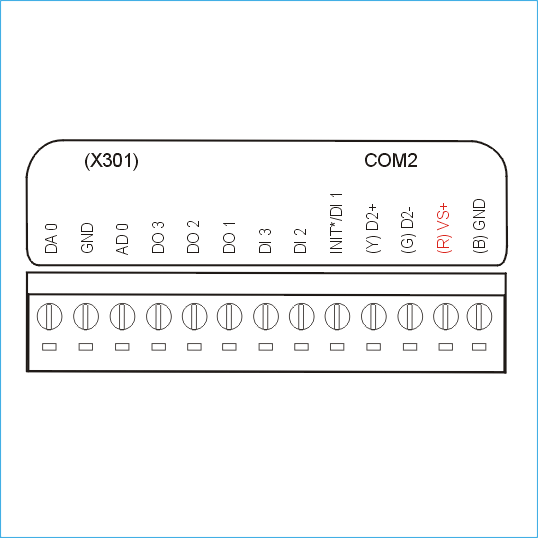

| X301 |
1-channel A/D ( 0~2.5V), 1-channel D/A ( 0~4.095V) |
|
|
| |
|
|
| |
|
|
|
|
|
|
