X202
X202
(For I-7188XB/XG/EX/EG, £gPAC-7186EX/EG/FD/SM)





Spec


Analog Input
Input Channels 7
Input Type 0 ~ 20mA
Resolution 12-bit
Sampling Rate 1KHz Max(Read one channel)
Input Impedance 125Ohms
Common Voltage +/-15VDC
Isolation Voltage Non-isolation
Other specifications
Dimensions 64 mm x 38 mm
Power requirement +5VDC
Environment
Environment with I-7188XC or
£gpac-7186 series Casing
Operating Temperature : -25 ~ +75¢XC
Storage Temperature : -40 ~ +80¢XC
Relative Humidity : 5% to 90% Non-condensing

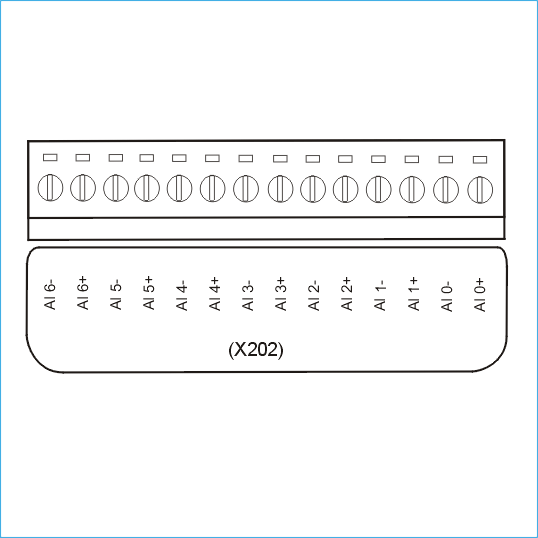

X202    7-channel A/D ( 0~20mA)
