X119 |
|
|
|
|
X119
(For 7188XA,7188XB,7188XC,7188XG,7188EX,7188EG,£gPAC-7186EG) |
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
|
|
|
|
 |
|
|
|
| |

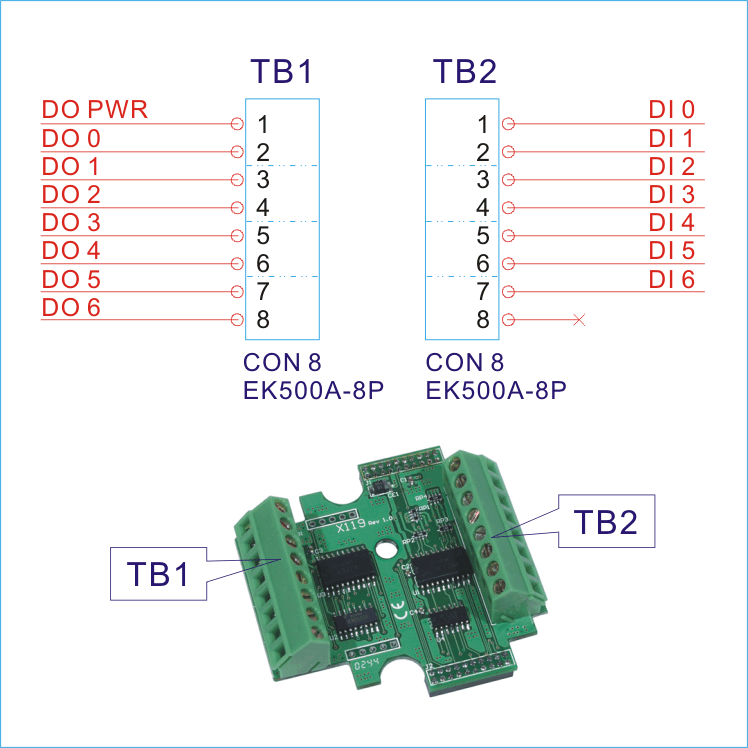

X119 (64mm X 36mm); 0.5W |
|
| |
Digital Input
- Channels : 7
- Input Range/Type :
Logic high level (3.5V~30V),
Logic low level (0V~1V)
- Isolated : none
|
|
| |
|
|
|
|
|
| |
|
|
| |
Digital Output
- Channels: 7
- Open-collector Output : 100 mA / 30V max
- Isolated : none
|
|
| |
*****Without Case******* |
|
| |
|
|
| |

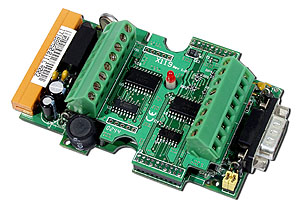

Install X119 in I-7188XA |
|
| |
|
|
|
|
|
| |
|
|
| |
Ordering Information
| X119 |
7-channel D/O and 7-channel D/I |
|
|
| |
|
|
| |
|
|
|
|
|
|
