X116 |
|
|
|
|
X116

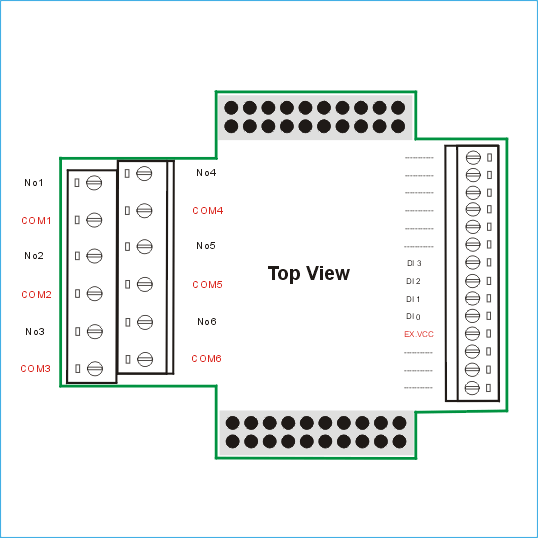

(For 7188XB,7188XG,7188EX,7188EG,£gPAC-7186EG) |
|
|
|
|
|
|
|
|
| |
|
|
|
| |
|
|
|
|
|
|
|
 |
|
|
|
| |
Digital Input
- Channels: 4
- Photo coupler isolation voltage: 3750V rms
- Max. Input voltage: 5V to 24V
- Dry Contact Input:
Logical level 0: close to GND
Logical level 1: open
- Input impedance: 3K
- Response time: 10 KHz, Max.
|
|
| |
|
|
|
|
|
| |
|
|
| |
Digital Output
- Channels : 6 (Form "A", Normal Open)
- Max. Switching capacity : 60W, 60VA
- Max. Switching voltage : 220Vdc, 250Vac
- Max. Switching current : 5A
- Max. Continuous current : 2A
- Electrical endurance:
Typical 5 millions operation at 12V / 10mA
Typical 1 millions operation at 6V / 100mA
- Mechanical endurance : Typical 10 millions operation at 30Vdc / 2A, 110Vdc / 0.3A, 120Vac / 0.5A, 240Vac / 0.25A
- Relay on time (typical): 5ms
- Relay off time (typical): 5ms
- Control logic: Input TTL high(+5V), relay on
|
|
| |
|
|
| |
Install X116 in I-7188EX-256 |
|
| |
|
|
|
|
|
| |
|
|
| |
Ordering Information
| X116 |
6-channel relay output and 4-channel isolated D/I |
|
|
| |
|
|
| |
|
|
|
|
|
|
