X109
X109
(For I-7188XB/XG/EX/EG, £gPAC-7186EX/EG/FD/SM)

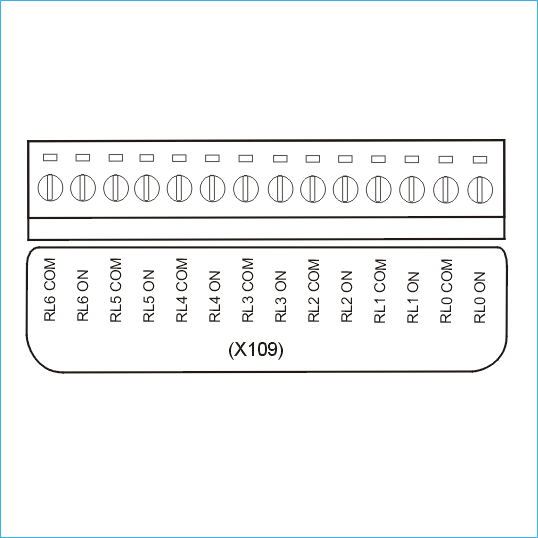

Parallel I/O Module

  • Channels: 7 (Form A)
  • Continuous load current:120mA (peak AC)
  • Peak load current: 0.3A
  • Output Power dissipation : 0.3W
  • Output Off state leakage current : 1uA
  • Output On resistance : 25Ohm
  • Load voltage : 350V(peak AC)
  • Turn On time : 0.23ms (Typical)
  • Turn Off time : 0.04ms (Typical)
  • Input / Output Isolation : 1,500Vac





Ordering Information

 X109  7-channel PhotoMos relay
