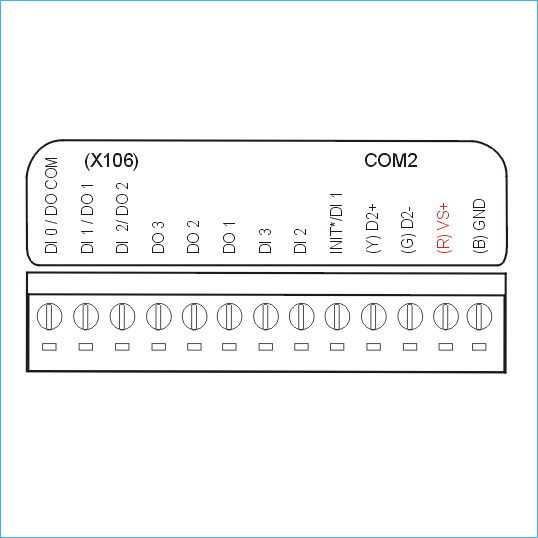

X106
X106
(For 7188XC)







Note : Used Jumper to select D/I or D/O function

Power consumption : 0.3 W




Digital Input

  • Channels : 3
  • Input Voltage:
    Logic high level (3.5V~30V),
    Logic low level (0V~1V)
  • Isolated : none





Digital Output

  • Channels : 2
  • Open-collector Output : 250 mA / 30V max
  • Isolated : none





Ordering Information

 X106  3-channel D/I & 2-channel D/O
