| Model: I-8411 |
|
 |
| Model: I-8811 |
|
 |
| Model: I-8411-G |
|
 |
| Model: I-8811-G |
|
|
|
I-8411/ I-8811
I-8411-G/
I-8811-G
Serial embedded controller
|
|
|
|
|
 |
|
|
| |
|
|
| |
The I-8411/ I-8811 are serial embedded controller with 4/8 I/O slots. Both are equipped with MiniOS7,an embedded OS similar to DOS that is developed by ICPDAS Co., LTD.
The MiniOS7 can boot up in a very short time (0.4~0.8 second).It has built-in hardware diagnostic function, and supports the full functions to access all 8K and 87K series I/O modules, such as DI, DO, DIO, AI, AO, Counter/Frequency, motion modules etc.

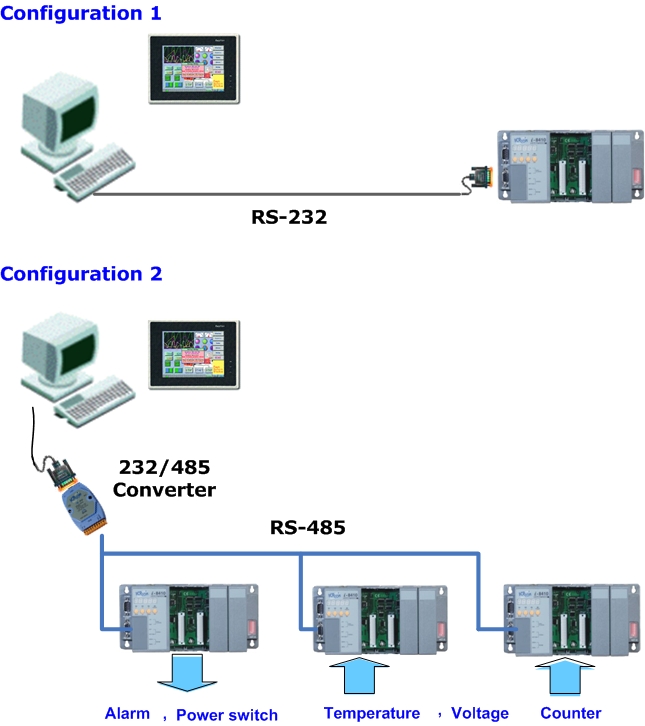

The I-8411/I-8811 back plane is equipped four serial COM Port, they include RS-232 and RS-485 ports and can be used in remote data acquisition and control applications, including environment monitoring, power management and factory automation. By using S-256 (256 KBytes) or S-512 (512 KBytes)battery backup SRAM, they provide data logger storage function.
Note: S256 and S512 are optional accessories. |
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
|
|
| |
Provide multi Serial Port interface on back plane.
COM1: RS-232
COM2: RS-485
COM3: RS-232/RS-485
COM4: RS-232
Provides a hardware serial number or an ASICKey to protect designated systems.
The built-in watchdog circuit will reset the CPU module if a failure occurs in either the hardware or software, allowing the controller system more reliable and stable in harsh and noisy environments. |
| Dual Bus designed to supports I-8K and I-87K series I/O modules, such as DI/DO, AI/AO, Counter/Frequency modules |
| Compact I/O Expansion slot allows the quick installation of various 8K and 87K I/O modules |
|
 |
| Firmware updated via the RS-232 port |
 |
| Ventilated housing designed to operate between ¡V25¢XC to +75¢XC |
 |
| Using DIN rail clips or Screw poles around the corners allows the control unit to be easily mounted on the control box |
| Frame Ground provides a path for bypassing ESD, allowing enhanced static protection (ESD) capability and ensures that the module is more reliable. |
|
|
Equipped with MiniOS7, ,an embedded OS similar to DOS that is developed by ICP DAS Co., LTD.
Provides full C library functions such as 8K, 87K I/O, 7-segment LED, RTC (real time clock), EEPROM etc. |
 |
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
| CPU module |
| CPU |
80188
or compatible (8-bit and 40MHz) |
| SRAM |
512KBytes |
| Flash |
512KBytes |
| EEPROM |
2KBytes |
| NVRAM |
Yes |
| RTC
(real time clock) |
Yes |
| Hardware
Serial Number |
Yes |
| Built-in
Watchdog Timer |
Yes |
| Communicate
Interface |
COM 0 |
Internal
communication with the 87K modules |
| COM
1 |
RS-232
(to update firmware) |
COM 2 |
RS-485 |
COM 3 |
RS-232/RS-485 |
| COM
4 |
RS-232 |
| Ethernet
Port |
- |
| SMMI |
| 5 - Digit LED Display |
Yes |
| 3 - Programmable LED Indicators |
Yes |
| 4 - Push Buttons |
Yes |
| I/O expansion slots |
| 8411 |
4
Slots |
| 8811 |
8 Slots |
| Dimensions |
| 8411 |
230mm
x 110mm x 75.5mm |
| 8811 |
354mm
x 110mm x 75.5mm |
| Operating Environment |
| Operating Temperature |
-25°C
to +75°C |
| Storage Temperature |
-30°C
to +85°C |
| Humidity |
5
~ 95%,non-condensing |
| Power |
| Protection |
Power
reverse polarity protection |
| 3KV power isolation |
- |
| Power requirement |
10
~ 30 V/DC |
| Power supply |
20W |
| Power consumption |
I-8411
: 3.9 W |
| I-8811
: 5.1 W |
|
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
| I-8411 |
I-8411 Embedded
Controller |
| I-8811 |
I-8811 Embedded
Controller |
| I-8411-G |
I-8411 Embedded
Controller with gray color |
| I-8811-G |
I-8411 Embedded Controller with gray color |
|
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
| S256 |
256K battery backup SRAM module |
| S512 |
512K battery backup SRAM
module |
| KA-52F |
AC100~250V
input, DC 24V/1A output, flat type power supply |
| DIN-KA52F |
KA-52F
with DIN-Rail mount |
| DP-665 |
AC
85 ~ 270 V input, DC 24V/1.7A and 5V/0.5A output power supply |
| DP-660 |
24V/1.7A
5V/0.5A Power Supply |
| DP-1200 |
24V/5A Power Supply |
|
|
|
|
| |
|
|
|
|
|
| |
