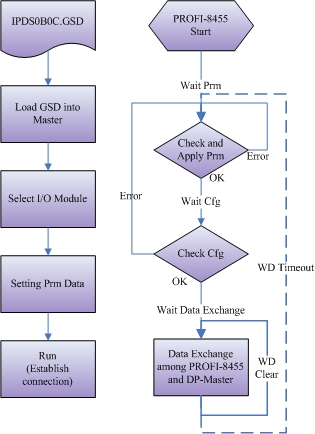

Flow chart of PROFI-8455

Features

Hardware Specifications

Modules Support

Ordering Information

PROFIBUS Lists

Introduction Page

PROFI-8455

~ NEW ~
PROFIBUS Remote I/O Unit with 4 Expansion Slots

The PROFI-8455 Remote I/O Unit is specially designed for the slave device of PROFIBUS DP protocol. It supports up to 4 slots for ICPDAS I-8k series, I-87k Low Profile series, and I-87k High Profiles series I/O modules. In addition, we also provide hot-swap function for I-87k High Profiles series I/O modules. To setup network, users can choose and configure I/O modules by using the GSD file without any other setting tools.

Industrial Automation
Factory Automation
Process Automation
Etc…

back

back

Protocol & Hierarchy	DP-V0 Slave
Supports Transmission Rate (Kbps)	9.6, 19.2, 45.45, 93.75, 187.5, 500, 1500, 3000, 6000, 12000
Transmission Rate Setting	detected automatically
Address Setting	0~126 set by Rotary switches
Indicators	PWR, ERR, and RUN LEDs
I/O modules Configuration	Configured by GSD file
Supports I/O modules hot-swap	I-87K High Profile series
Network Isolation Protection	High Speed iCoupler
DC Isolation Protection	3000VDC on PROFIBUS side
4KV ESD Protection	Contact for eash terminal

back

Hardware
CPU	80186, 80 MHz or compatible
SRAM/Flash/EEPROM	512 KB / 512 KB / 2 KB
Watchdog	Watchdog IC CPU built-in
Expansion Slot	4 slots
ESD Protection	4 kV class A
PROFIBUS Interface
Controller	Siemens SPC3
Transceiver	ADI ADM2486
Connector	9-pin female D-Sub
Baud Rate (bps)	9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M
Transmission Distance (m)	Depend on baud rate (for example, max. 1200 m at 9.6 kbps )
Isolation	3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic
Protocol	DP-V0
UART Interface
COM	RS-232 (For updating firmware)
LED
Round LED	PWR LED, RUN LED, ERR LED
Power
Power supply	Unregulated +10 ~ +30 VDC
Protection	Power reverse polarity protection, Over-voltage brown-out protection
Power Consumption	5 W
Mechanism
Installation	DIN-Rail or Wall Mounting
Dimensions	188 mm x 91 mm x 132 mm (W x L x H)
Environment
Operating Temp.	-25 ~ 75 ℃
Storage Temp.	-40 ~ 80 ℃
Humidity	5 ~ 95% RH, non-condensing

back

Type	Module Name
DI	I-8040 / I-8051 / I-8052 / I-8053 / I-8058 I-87040 / I-87051 / I-87052 / I-87053 / I-87058 I-87040W / I-87046W / I-87051W / I-87052W / I-87053W / I-87053W-A5 / I-87058W / I-87059W
DO	I-8037 / I-8041 / I-8056 / I-8057 / I-8060 / I-8064 / I-8065 / I-8066 / I-8068 / I-8069 I-87041 / I-87057 / I-87064 / I-87065 / I-87066 / I-87068 / I-87069 I-87041W / I-87057W / I-87064W / I-87065W / I-87066W / I-87068W / I-87069W
DI/O	I-8042 / I-8050 / I-8054 / I-8055 / I-8063 / I-8077 I-87054 / I-87055 / I-87061W / I-87063 I-87054W / I-87055W / I-87063W
AI	I-8017H / I-8017HS I-87013 / I-87017 / I-87018 I-87013W / I-87015W / I-87017W / I-87017W-A5 / I-87017RW / I-87017RCW / I-87018RW /I-87018ZW / I-87019RW
AO	I-8024 I-87022 / I-87024 / I-87026 I-87024W / I-87028CW
Counter/Frequency	I-8080 I-87082 I-87082W
Motion	I-8093W

back

PROFI-8455-G CR

PROFIBUS Remote I/O Unit with 4 Expansion Slots (RoHS)
