PROFI-5052
~ NEW ~

PROFIBUS Remote I/O Module






The PROFI-5052 is specially designed for the slave device of PROFIBUS DP protocol. It supports up to 12-channel isolated digital input with 5000Vrms field to logic isolation. Users can easily to choose and configure it by using the GSD file in any PROFIBUS Configurator.

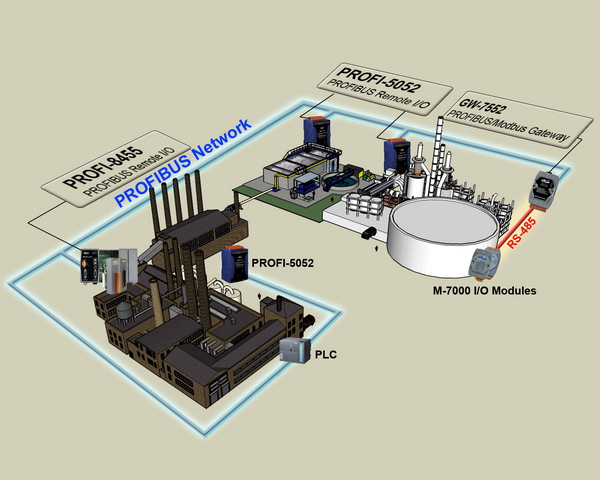

  • Industrial Automation
  • Factory Automation
  • Process Automation
  • Etc¡K





Protocol & Hierarchy
DP-V0 Slave
Supports Transmission Rate (kbps)
9.6, 19.2, 45.45, 93.75, 187.5, 500, 1500, 3000, 6000, 12000
Transmission Rate Setting
detected automatically
Address Setting
0~99 set by rotary switches
Indicators
PWR and RUN LEDs
I/O modules Configuration
Configured by GSD file
Network Isolation Protection
High Speed iCoupler
DC Isolation Protection
3000 VDC on PROFIBUS side
4KV ESD Protection
Contact for each terminal







Hardware
ESD Protection
4 kV class A
PROFIBUS Interface
Controller
Profichip VPCLS2
Transceiver
ADI ADM2486
Connector
9-pin female D-Sub
Baud Rate (bps)
9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M
Transmission Distance (m)
Depend on baud rate (for example, max. 1200 m at 9.6 kbps )
Isolation
3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic
Protocol
DP-V0
LED
Round LED
PWR LED, RUN LED
Power
Power supply
Unregulated +10 ~ +40 VDC
Protection
Reverse polarity protection, Over-voltage brown-out protection
Power Consumption
1 W
I/O
Digital Input
12 Channels (Sink or Source), Isolated from each other.
Off Voltage Level: +1V Max. On Voltage Level: +4 ~ +30V
Input Impedance: 3K£[ in series with opto-coupler
Isolation Voltage: 5000Vrms
Mechanism
Installation
DIN-Rail
Dimensions
91 mm x 128 mm x 52 mm (W x L x H)
Environment
Operating Temp.
-25 ~ 75¢J
Storage Temp.
-30 ~ 85¢J
Humidity
5 ~ 95% RH, non-condensing







PROFI-5052 CR
PROFIBUS Remote I/O Module (12-channel Isolated Digital Input)
